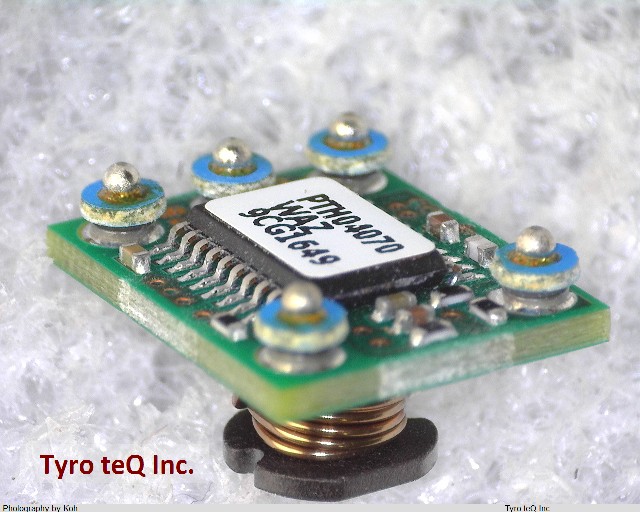

PTH04070WAZ データシート

Name: PTH04070WAZ
Brand: TI
SKU: 260070494-0000-0000-0000

PTH04070WAZ - TI の商品詳細ページです。

２営業日以内に回答いたします

PTH04070WAZ の詳細情報

型番	PTH04070WAZ
メーカー	TI
データシート
Additional Feature	ALSO OPERATES WITH A 5 V INPUT NOMINAL
Analog IC - Other Type	DC-DC REGULATED POWER SUPPLY MODULE
Approvals	UL, CSA V
Control Mode	VOLTAGE-MODE
Efficiency (Main Output)	92 %
Height	7.81 mm
Input Voltage-Max	5.5 V
Input Voltage-Min	3 V
Input Voltage-Nom	3.3 V
JESD-30 Code	R-PDMA-T5
JESD-609 Code	e1
Length	12.57 mm
Line Regulation-Max	0.03 %
Load Regulation-Max	0.15 %
Moisture Sensitivity Level	3
Number of Functions	1
Number of Outputs	1
Number of Terminals	5
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	3 A
Output Voltage-Max	3.6 V
Output Voltage-Min	0.9 V
Output Voltage-Nom	3.3 V
Package Body Material	PLASTIC/EPOXY
Package Code	DMA
Package Shape	RECTANGULAR
Package Style	MICROELECTRONIC ASSEMBLY Meter
Peak Reflow Temperature (Cel)	260
Protection(s)	OUTPUT OVER CURRENT;THERMAL V
Qualification Status	Not Qualified
Ripple Voltage (Main Out)	0.00353 Vrms
Sub Category	Power Supply Modules
Surface Mount	NO
Technology	HYBRID
Terminal Finish	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form	THROUGH-HOLE
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Total Power Output-Max	9.9 W
Trim/Adjustable Output	YES V
Width	10.16 mm
