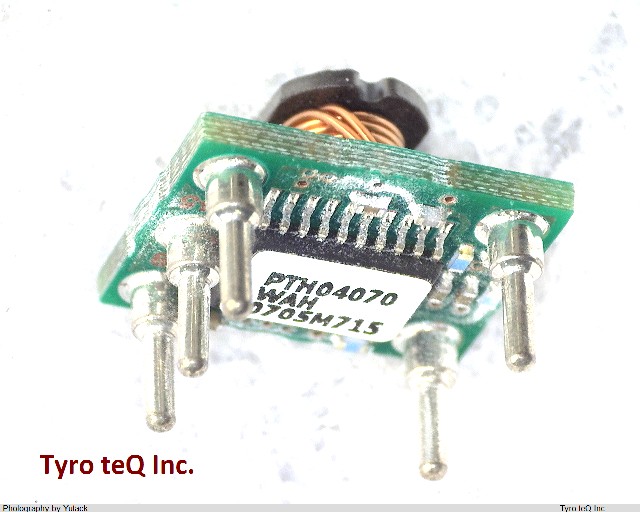

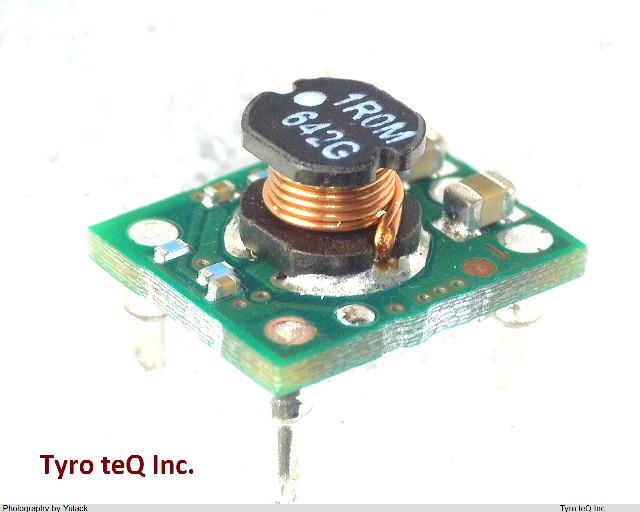

PTH04070WAH データシート

Name: PTH04070WAH
Brand: TI
SKU: 260070492-0000-0000-0000

PTH04070WAH - TI の商品詳細ページです。

２営業日以内に回答いたします

PTH04070WAH の詳細情報

型番	PTH04070WAH
メーカー	TI
データシート
Additional Feature	REMOTE SHUTDOWN
Analog IC - Other Type	SWITCHING REGULATOR
Approvals	UL, CSA V
Efficiency (Main Output)	92 %
Height	7.81 mm
Input Voltage-Max	5.5 V
Input Voltage-Min	3 V
Input Voltage-Nom	5 V
JESD-30 Code	R-PDMA-P5
JESD-609 Code	e3
Length	12.57 mm
Line Regulation-Max	0.03 %
Load Regulation-Max	0.15 %
Number of Functions	1
Number of Terminals	5
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	3 A
Output Voltage-Max	3.6 V
Output Voltage-Min	0.9 V
Output Voltage-Nom	3.3 V
Package Body Material	PLASTIC/EPOXY
Package Code	DMA
Package Shape	RECTANGULAR
Package Style	MICROELECTRONIC ASSEMBLY Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Ripple Voltage (Main Out)	0.00354 Vrms
Sub Category	Power Supply Modules
Surface Mount	NO
Switcher Configuration	BUCK
Technology	HYBRID
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	PIN/PEG
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	10.16 mm
