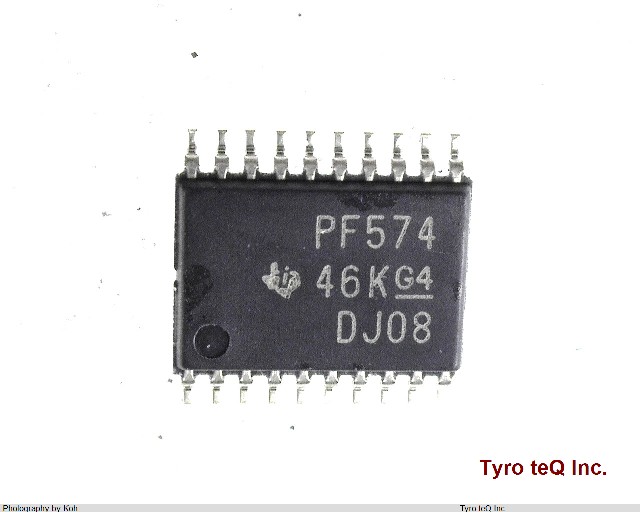

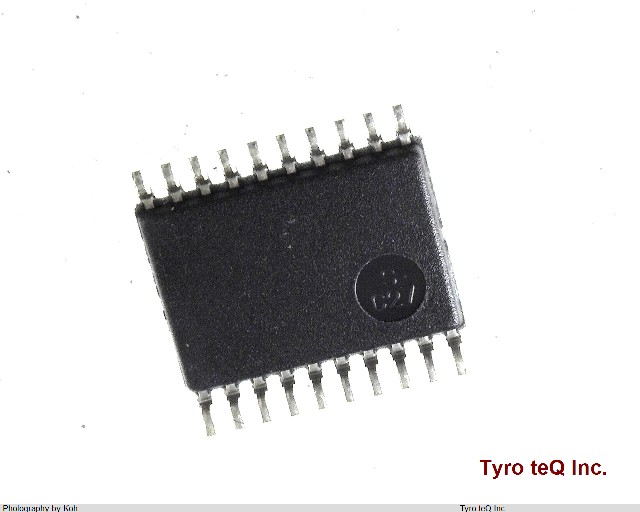

PCF8574PW データシート

Name: PCF8574PW
Brand: TI
SKU: 260036540-0000-0000-0000

PCF8574PW - TI の商品詳細ページです。

２営業日以内に回答いたします

PCF8574PW の詳細情報

型番	PCF8574PW
メーカー	TI
データシート
Address Bus Width	8
Clock Frequency-Max	0.1 MHz
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e4
Length	6.5 mm
Moisture Sensitivity Level	1
Number of Bits	8
Number of I/O Lines	8
Number of Ports	1
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	DIP20,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3/5 V
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Parallel IO Ports
Supply Current-Max	0.1 mA
Supply Voltage-Max	6 V
Supply Voltage-Min	2.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	4.4 mm
uPs/uCs/Peripheral ICs Type	PARALLEL IO PORT, GENERAL PURPOSE
