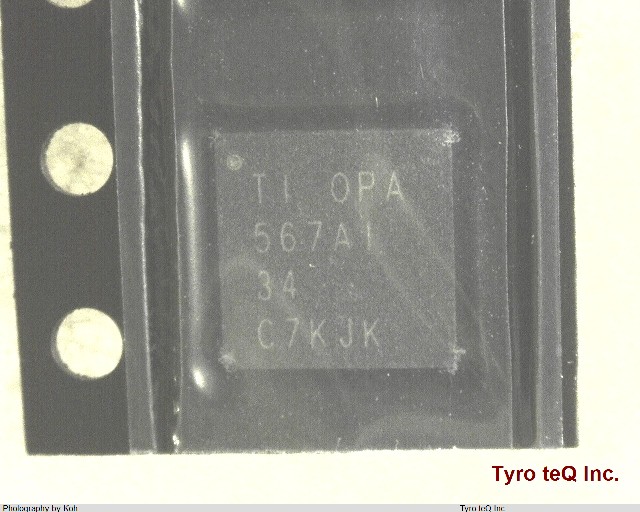

OPA567AIRHGR データシート Ti

OPA567AIRHGR - TI の商品詳細ページです。

1
No Image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

OPA567AIRHGR の詳細情報

  • 仕様・詳細
  • メーカー情報
型番OPA567AIRHGR
メーカーTI
データシートProduct_list_pdf
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 1.0E-5 uA
Bias Current-Max (IIB) @25C 1.0E-5 uA
Common-mode Reject Ratio-Min 60 dB
Common-mode Reject Ratio-Nom 80 dB
Frequency Compensation YES
Input Offset Current-Max (IIO) 1.0E-5 uA
Input Offset Voltage-Max 2000 uV
JESD-30 Code S-PQCC-N12
JESD-609 Code e4
Length 5 mm
Low-Bias YES
Low-Offset NO
Micropower NO
Moisture Sensitivity Level 2
Number of Functions 1
Number of Terminals 12
Operating Temperature-Max 125 Cel
Operating Temperature-Min -55 Cel
Package Body Material PLASTIC/EPOXY
Package Code HVQCCN
Package Equivalence Code LCC12,.2SQ,20
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Packing Method TAPE AND REEL
Peak Reflow Temperature (Cel) 260
Power YES
Power Supplies 3/5 V
Programmable Power NO
Qualification Status Not Qualified
Seated Height-Max 1 mm
Slew Rate-Nom 1.2 V/us
Sub Category Operational Amplifier
Supply Current-Max 6 mA
Supply Voltage Limit-Max 7.5 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Temperature Grade MILITARY
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form NO LEAD
Terminal Pitch 1 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Unity Gain BW-Nom 1200 kHz
Voltage Gain-Min 100000
Wideband NO
Width 5 mm
