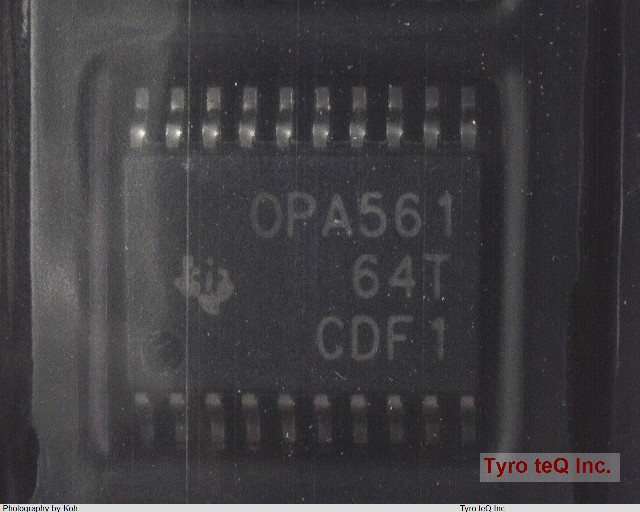

OPA561PWP データシート

Name: OPA561PWP
Brand: TI
SKU: 250007604-0000-0000-0000

OPA561PWP - TI の商品詳細ページです。

２営業日以内に回答いたします

OPA561PWP の詳細情報

型番	OPA561PWP
メーカー	TI
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.0001 uA
Bias Current-Max (IIB) @25C	0.0001 uA
Common-mode Reject Ratio-Min	70 dB
Common-mode Reject Ratio-Nom	80 dB
Frequency Compensation	YES
Input Offset Current-Max (IIO)	0.0001 uA
Input Offset Voltage-Max	20000 uV
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e4
Length	6.5 mm
Low-Bias	YES
Low-Offset	NO
Micropower	NO
Moisture Sensitivity Level	2
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	HTSSOP
Package Equivalence Code	TSSOP20,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power	YES
Power Supplies	+-3.5/+-7.5/7/15 V
Programmable Power	YES
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Slew Rate-Nom	50 V/us
Sub Category	Operational Amplifier
Supply Current-Max	70 mA
Supply Voltage Limit-Max	16 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Unity Gain BW-Nom	17000 kHz
Voltage Gain-Min	10000
Wideband	NO
Width	4.4 mm
