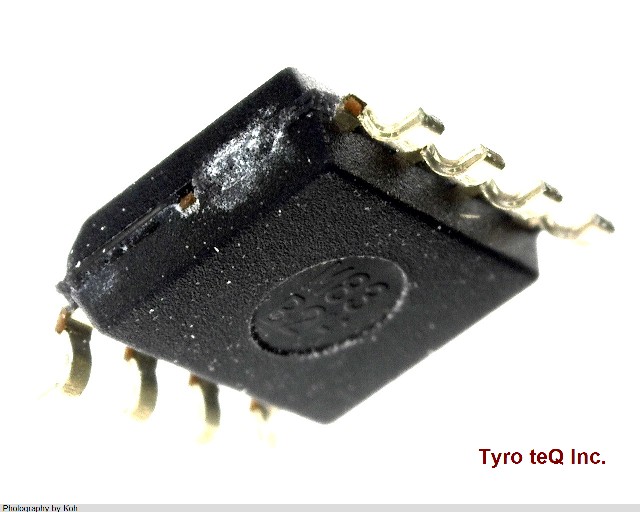

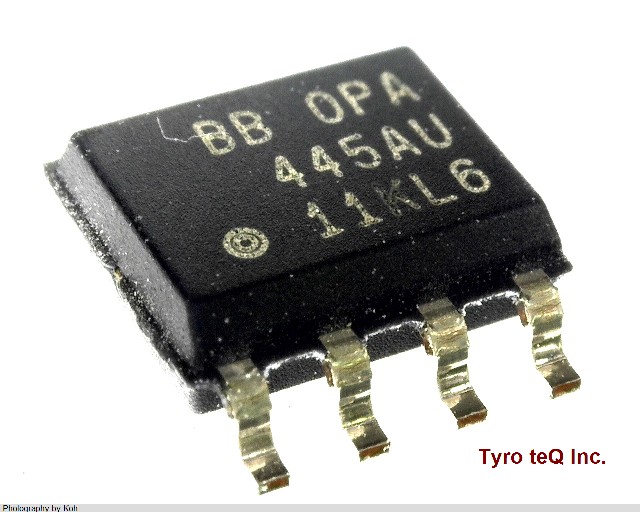

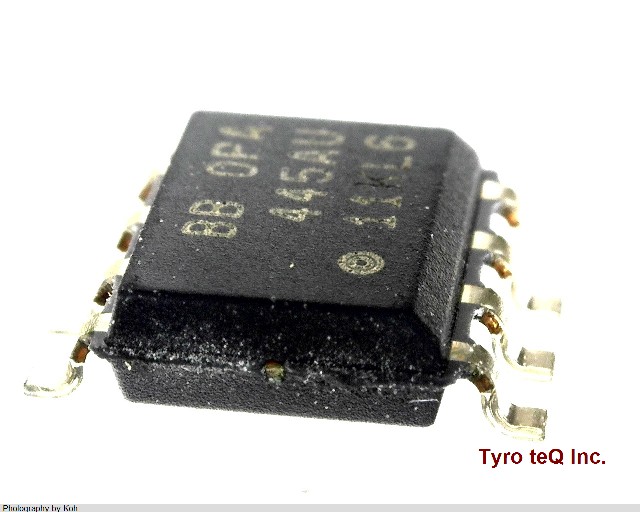

OPA445AU データシート

Name: OPA445AU
Brand: TI
SKU: 250030306-0000-0000-0000

OPA445AU - TI の商品詳細ページです。

２営業日以内に回答いたします

OPA445AU の詳細情報

型番	OPA445AU
メーカー	TI
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.02 uA
Bias Current-Max (IIB) @25C	5.0E-5 uA
Common-mode Reject Ratio-Min	80 dB
Common-mode Reject Ratio-Nom	95 dB
Frequency Compensation	YES
Input Offset Current-Max (IIO)	0.01 uA
Input Offset Voltage-Max	3000 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.9 mm
Low-Bias	YES
Low-Offset	NO
Micropower	NO
Moisture Sensitivity Level	3
Neg Supply Voltage Limit-Max	-50 V
Neg Supply Voltage-Nom (Vsup)	-40 V
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	RAIL
Peak Reflow Temperature (Cel)	260
Power	NO
Power Supplies	+-40 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Slew Rate-Min	5 V/us
Slew Rate-Nom	15 V/us
Sub Category	Operational Amplifier
Supply Current-Max	4.7 mA
Supply Voltage Limit-Max	50 V
Supply Voltage-Nom (Vsup)	40 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	MILITARY
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Unity Gain BW-Nom	2000 kHz
Voltage Gain-Min	70800
