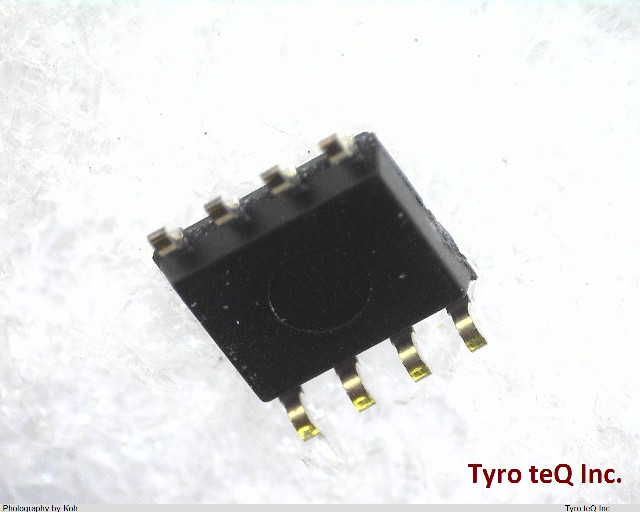

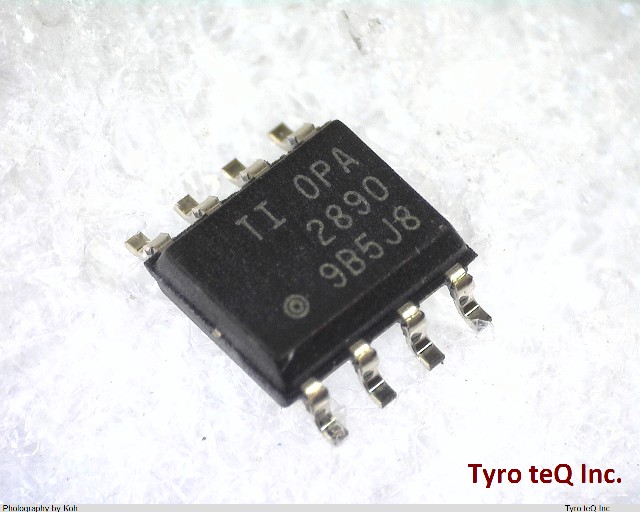

OPA2890ID データシート

Name: OPA2890ID
Brand: TI
SKU: 250007057-0000-0000-0000

OPA2890ID - TI の商品詳細ページです。

２営業日以内に回答いたします

OPA2890ID の詳細情報

型番	OPA2890ID
メーカー	TI
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	2 uA
Bias Current-Max (IIB) @25C	1.6 uA
Common-mode Reject Ratio-Min	60 dB
Common-mode Reject Ratio-Nom	68 dB
Frequency Compensation	YES
Input Offset Current-Max (IIO)	0.4 uA
Input Offset Voltage-Max	5000 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e4
Length	3 mm
Low-Bias	YES
Low-Offset	NO
Micropower	YES
Moisture Sensitivity Level	2
Neg Supply Voltage Limit-Max	-6.5 V
Neg Supply Voltage-Nom (Vsup)	-5 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	HSOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power	NO
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Slew Rate-Min	175 V/us
Slew Rate-Nom	400 V/us
Sub Category	Operational Amplifier
Supply Current-Max	2.4 mA
Supply Voltage Limit-Max	6.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Unity Gain BW-Nom	250000 kHz
Voltage Gain-Min	562.341
Wideband	YES
Width	3 mm
