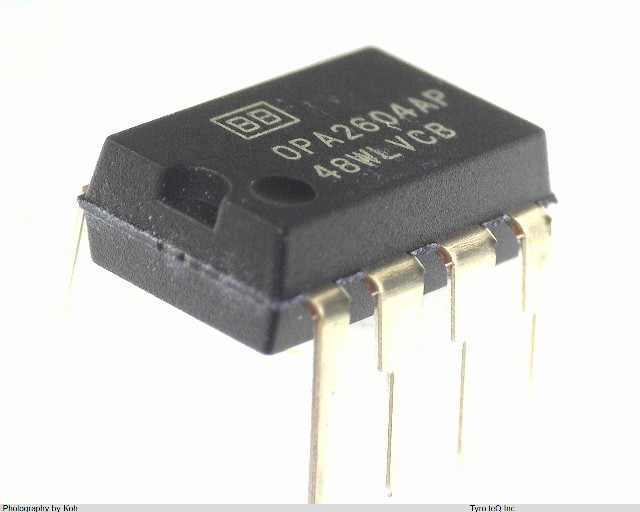

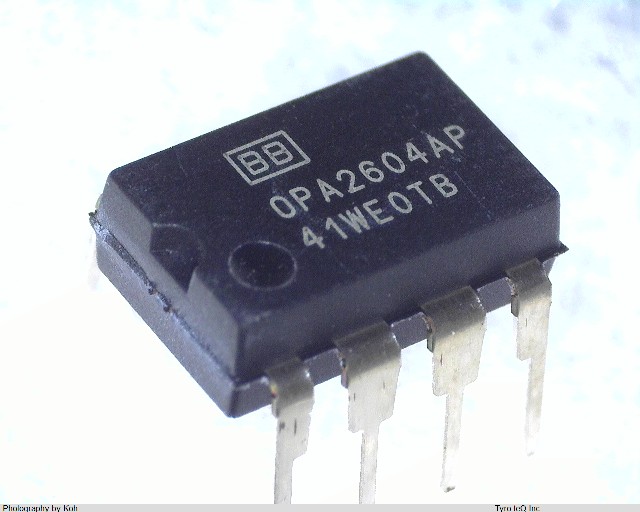

OPA2604AP データシート

Name: OPA2604AP
Brand: TI
SKU: 250000362-0000-0000-0000

OPA2604AP - TI の商品詳細ページです。

２営業日以内に回答いたします

OPA2604AP の詳細情報

型番	OPA2604AP
メーカー	TI
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.0001 uA
Common-mode Reject Ratio-Min	80 dB
Common-mode Reject Ratio-Nom	100 dB
Frequency Compensation	YES
Input Offset Voltage-Max	5000 uV
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	9.81 mm
Low-Bias	YES
Low-Offset	NO
Neg Supply Voltage Limit-Max	-25 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	+-4.5/+-24 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Slew Rate-Min	15 V/us
Slew Rate-Nom	25 V/us
Sub Category	Operational Amplifier
Supply Current-Max	12 mA
Supply Voltage Limit-Max	25 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Unity Gain BW-Nom	20000 kHz
Voltage Gain-Min	10000
Width	7.62 mm
