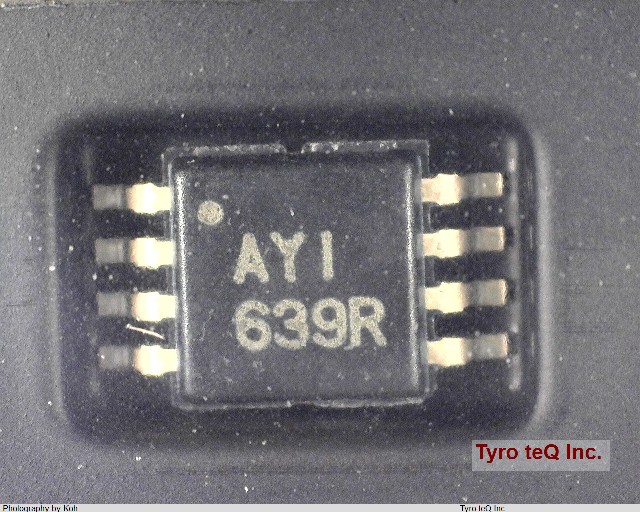

OPA2356AIDGKT データシート

Name: OPA2356AIDGKT
Brand: TI
SKU: 250006778-0000-0000-0000

OPA2356AIDGKT - TI の商品詳細ページです。

２営業日以内に回答いたします

OPA2356AIDGKT の詳細情報

型番	OPA2356AIDGKT
メーカー	TI
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	5.0E-5 uA
Bias Current-Max (IIB) @25C	5.0E-5 uA
Common-mode Reject Ratio-Min	66 dB
Common-mode Reject Ratio-Nom	80 dB
Frequency Compensation	YES
Input Offset Current-Max (IIO)	5.0E-5 uA
Input Offset Voltage-Max	9000 uV
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e4
Length	3 mm
Low-Bias	YES
Low-Offset	NO
Micropower	NO
Moisture Sensitivity Level	2
Neg Supply Voltage Limit-Max	0 V
Neg Supply Voltage-Nom (Vsup)	0 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP8,.19
Package Shape	SQUARE
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power	NO
Power Supplies	2.7/5.5 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Slew Rate-Nom	300 V/us
Sub Category	Operational Amplifier
Supply Current-Max	22 mA
Supply Voltage Limit-Max	7.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Unity Gain BW-Nom	200000 kHz
Voltage Gain-Min	10000
Wideband	YES
