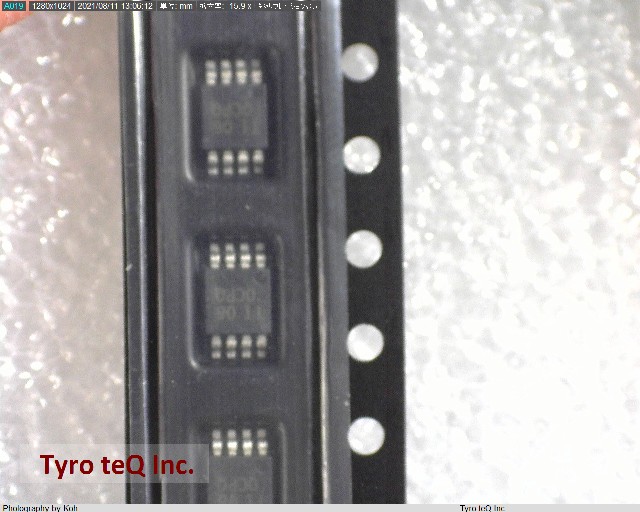

OPA2314AIDGKR Ti

OPA2314AIDGKR - TI の商品詳細ページです。

1
OPA2314AIDGKR
  • OPA2314AIDGKR
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

OPA2314AIDGKR の詳細情報

  • 仕様・詳細
  • メーカー情報
型番OPA2314AIDGKR
メーカーTI
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.0006 uA
Bias Current-Max (IIB) @25C 1.0E-5 uA
Common-mode Reject Ratio-Min 66 dB
Common-mode Reject Ratio-Nom 80 dB
Frequency Compensation YES
Input Offset Current-Max (IIO) 1.0E-5 uA
Input Offset Voltage-Max 2500 uV
JESD-30 Code S-PDSO-G8
JESD-609 Code e4
Length 3 mm
Low-Bias YES
Low-Offset NO
Micropower YES
Moisture Sensitivity Level 2
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max 125 Cel
Operating Temperature-Min -40 Cel
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP8,.19
Package Shape SQUARE
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method TR
Peak Reflow Temperature (Cel) 260
Power NO
Power Supplies +-0.9/+-2.75/1.8/5.5 V
Programmable Power NO
Qualification Status Not Qualified
Seated Height-Max 1.1 mm
Slew Rate-Nom 1.5 V/us
Sub Category Operational Amplifier
Supply Current-Max 0.38 mA
Supply Voltage Limit-Max 7 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Unity Gain BW-Nom 3000 kHz
Voltage Gain-Min 31620
Wideband NO
Width 3 mm
