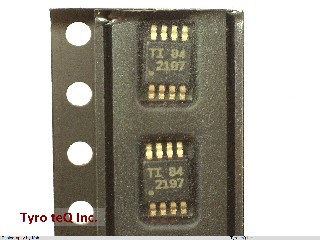

OPA2197QDGKRQ1

Name: OPA2197QDGKRQ1
Brand: TI
SKU: 250031333-0000-0000-0000

OPA2197QDGKRQ1 - TI の商品詳細ページです。

２営業日以内に回答いたします

OPA2197QDGKRQ1 の詳細情報

型番	OPA2197QDGKRQ1
メーカー	TI
Amplifier Type	OPERATIONAL AMPLIFIER
Average Bias Current-Max (IIB)	0.005 uA
Bias Current-Max (IIB) @25C	2.0E-5 uA
Common-mode Reject Ratio-Min	120 dB
Common-mode Reject Ratio-Nom	100 dB
Input Offset Voltage-Max	500 uV
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e4
Length	3 mm
Moisture Sensitivity Level	2
Neg Supply Voltage Limit-Max	-20 V
Neg Supply Voltage-Nom (Vsup)	-3 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Shape	SQUARE
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Screening Level	AEC-Q100
Seated Height-Max	1.1 mm
Slew Rate-Nom	20 V/us
Sub Category	Operational Amplifier
Supply Current-Max	2.6 mA
Supply Voltage Limit-Max	20 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Unity Gain BW-Nom	10000 kHz
Width	3 mm
