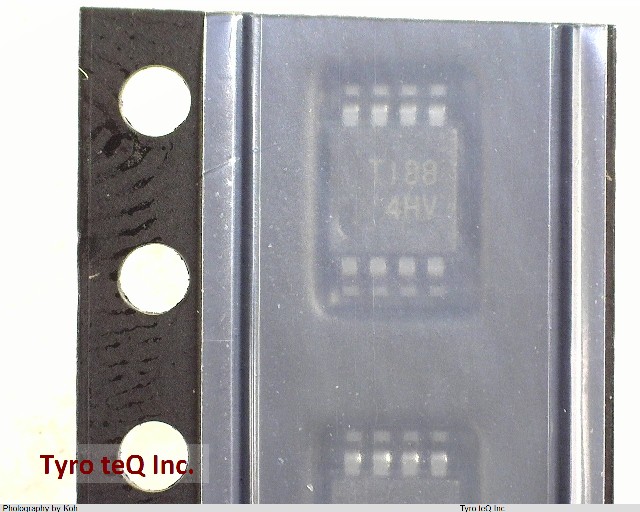

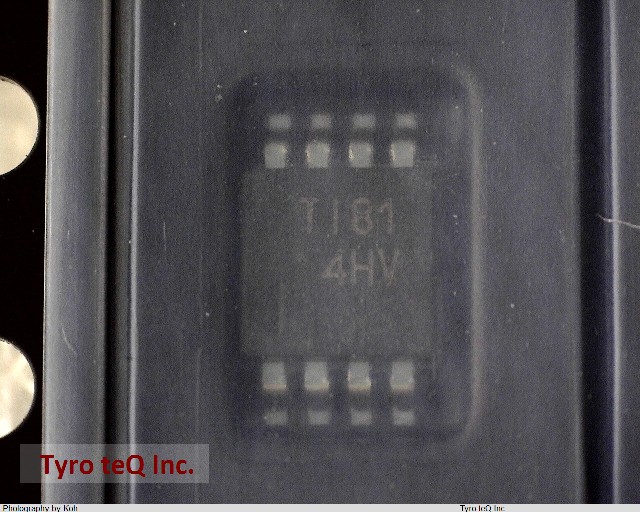

OPA2197IDGKT

Name: OPA2197IDGKT
Brand: TI
SKU: 250031337-0000-0000-0000

OPA2197IDGKT - TI の商品詳細ページです。

２営業日以内に回答いたします

OPA2197IDGKT の詳細情報

型番	OPA2197IDGKT
メーカー	TI
Amplifier Type	OPERATIONAL AMPLIFIER
Average Bias Current-Max (IIB)	0.005 uA
Bias Current-Max (IIB) @25C	2.0E-5 uA
Common-mode Reject Ratio-Min	120 dB
Common-mode Reject Ratio-Nom	140 dB
Input Offset Voltage-Max	100 uV
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e4
Length	3 mm
Moisture Sensitivity Level	2
Neg Supply Voltage Limit-Max	-20 V
Neg Supply Voltage-Nom (Vsup)	-3 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Shape	SQUARE
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Seated Height-Max	1.1 mm
Slew Rate-Nom	20 V/us
Sub Category	Operational Amplifier
Supply Current-Max	2.6 mA
Supply Voltage Limit-Max	20 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Unity Gain BW-Nom	10000 kHz
Width	3 mm
