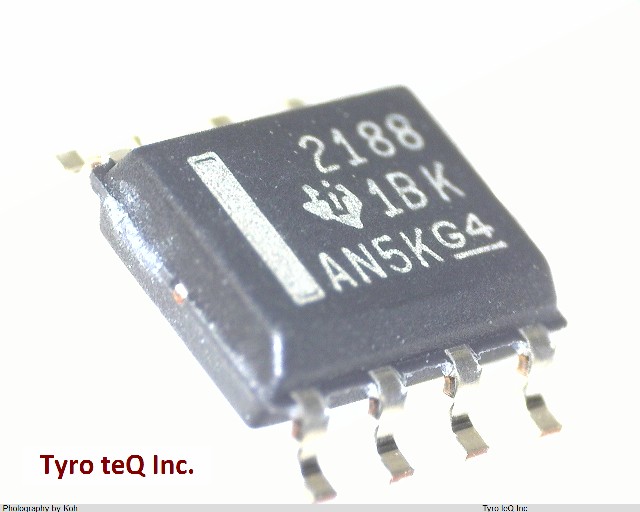

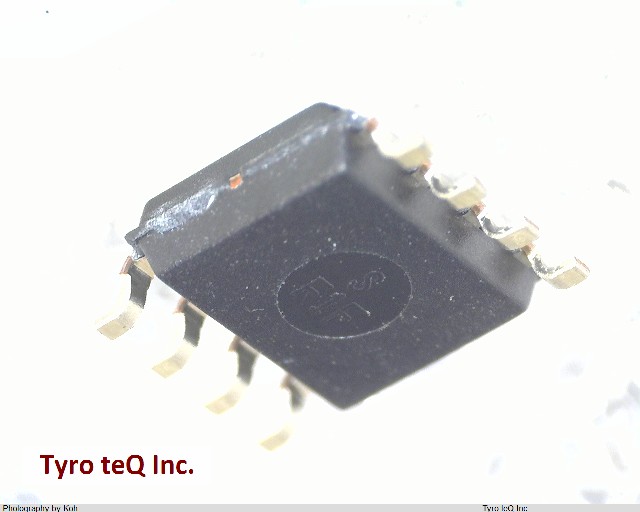

OPA2188AID

Name: OPA2188AID
Brand: TI
SKU: 250028304-0000-0000-0000

OPA2188AID - TI の商品詳細ページです。

２営業日以内に回答いたします

OPA2188AID の詳細情報

型番	OPA2188AID
メーカー	TI
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.004 uA
Bias Current-Max (IIB) @25C	0.00085 uA
Common-mode Reject Ratio-Min	120 dB
Common-mode Reject Ratio-Nom	134 dB
Frequency Compensation	YES
Input Offset Current-Max (IIO)	0.006 uA
Input Offset Voltage-Max	25 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e4
Length	3 mm
Low-Bias	YES
Low-Offset	YES
Micropower	YES
Moisture Sensitivity Level	2
Neg Supply Voltage Limit-Max	-20 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power	NO
Power Supplies	+-2/+-18/4/36 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Slew Rate-Nom	0.8 V/us
Sub Category	Operational Amplifier
Supply Current-Max	1.02 mA
Supply Voltage Limit-Max	20 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Unity Gain BW-Nom	2000 kHz
Voltage Gain-Min	316000
Wideband	NO
Width	3 mm
