OPA1654AIPWR Ti

OPA1654AIPWR - TI の商品詳細ページです。

1

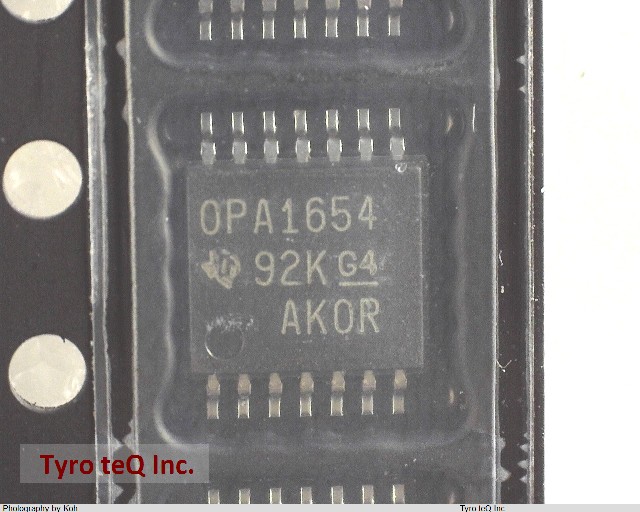

OPA1654AIPWR
  • OPA1654AIPWR
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

OPA1654AIPWR の詳細情報

  • 仕様・詳細
  • メーカー情報
型番OPA1654AIPWR
メーカーTI
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.0001 uA
Bias Current-Max (IIB) @25C 0.0001 uA
Common-mode Reject Ratio-Min 100 dB
Common-mode Reject Ratio-Nom 110 dB
Frequency Compensation YES
Input Offset Current-Max (IIO) 0.0001 uA
Input Offset Voltage-Max 1500 uV
JESD-30 Code R-PDSO-G14
JESD-609 Code e4
Length 5 mm
Low-Bias YES
Low-Offset NO
Micropower NO
Moisture Sensitivity Level 2
Neg Supply Voltage Limit-Max -20 V
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Functions 4
Number of Terminals 14
Operating Temperature-Max 85 Cel
Operating Temperature-Min -40 Cel
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method TR
Peak Reflow Temperature (Cel) 260
Power NO
Power Supplies +-2.25/+-18/4.5/36 V
Programmable Power NO
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Slew Rate-Nom 10 V/us
Sub Category Operational Amplifier
Supply Current-Max 10 mA
Supply Voltage Limit-Max 20 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Unity Gain BW-Nom 18000 kHz
Voltage Gain-Min 199500
Wideband NO
会社名称Texas Instruments Incorporated.
設立1930
資本金USD 816 million
所在地12500 TI Boulevard Dallas, Texas 75243 USA
URLhttp://www.ti.com/
