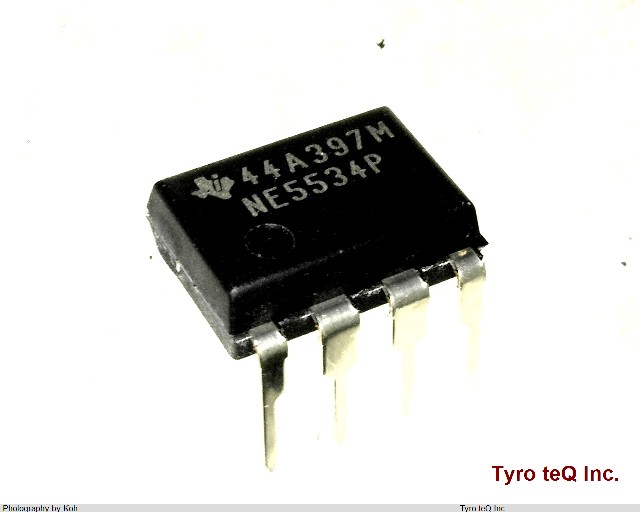

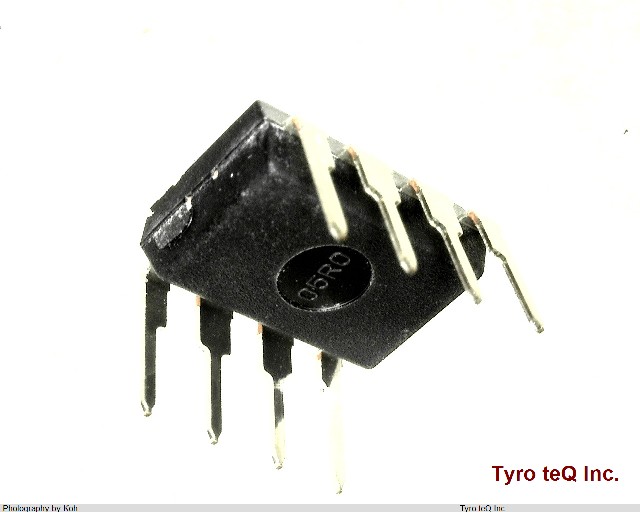

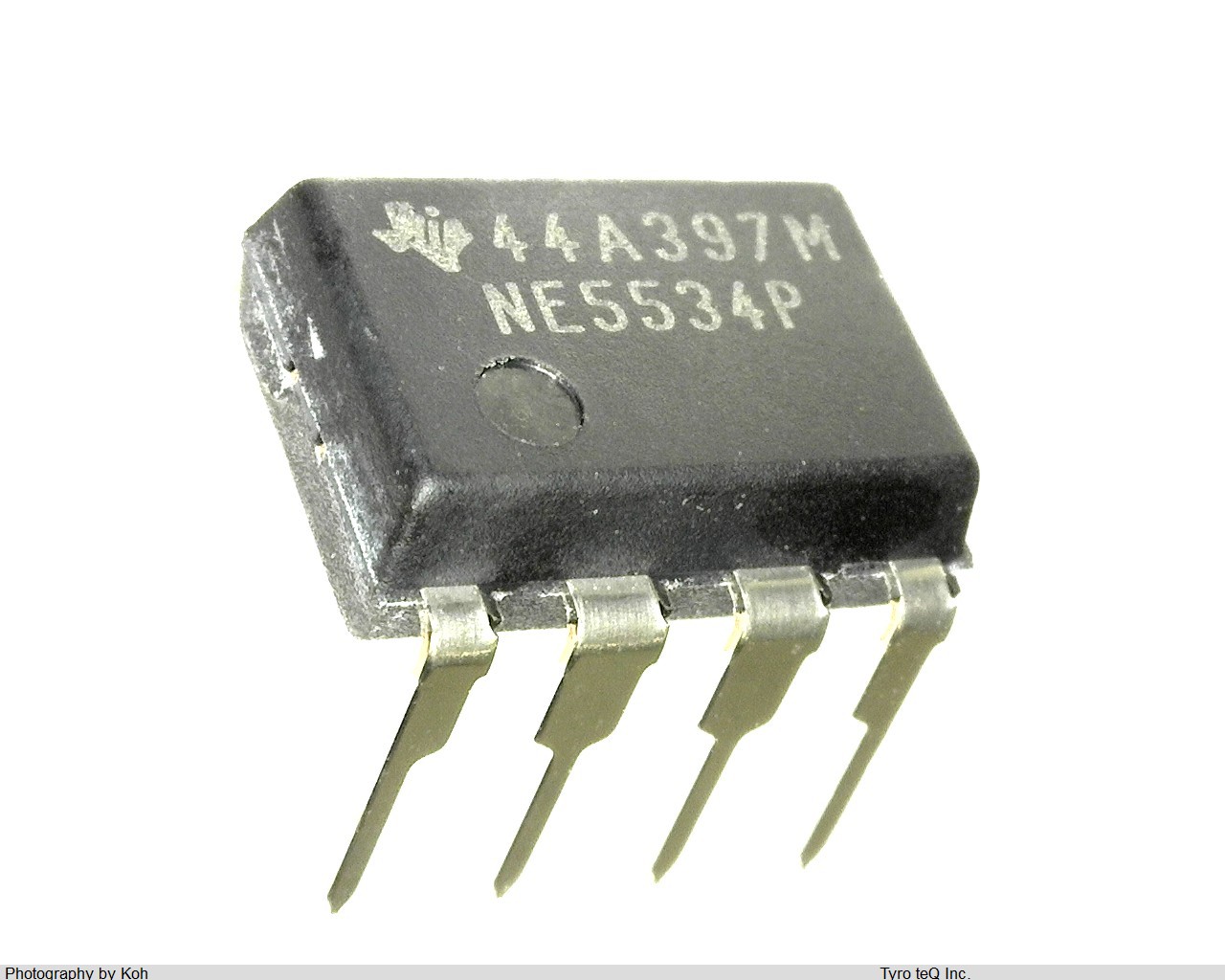

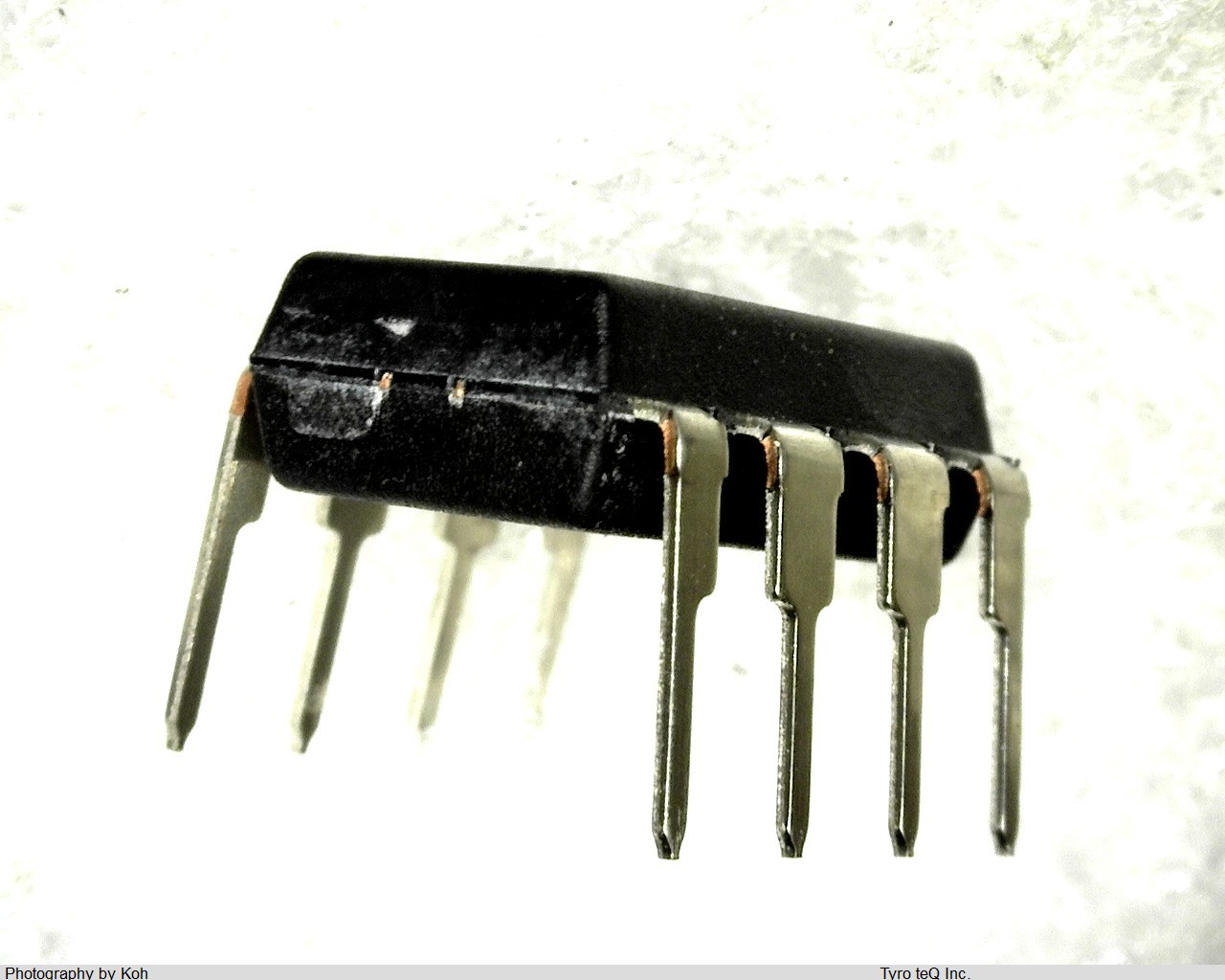

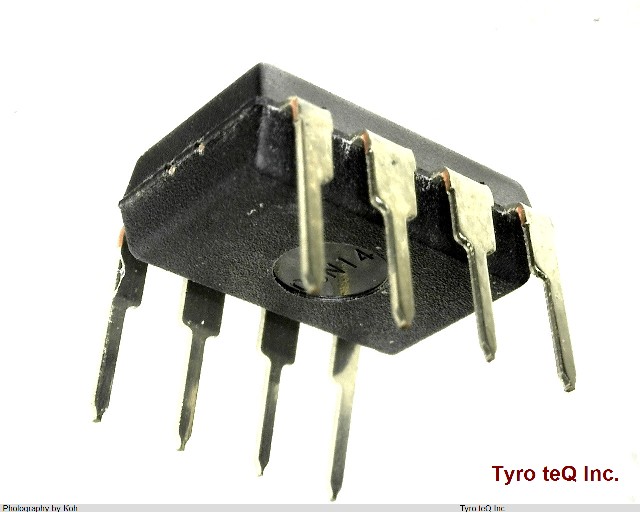

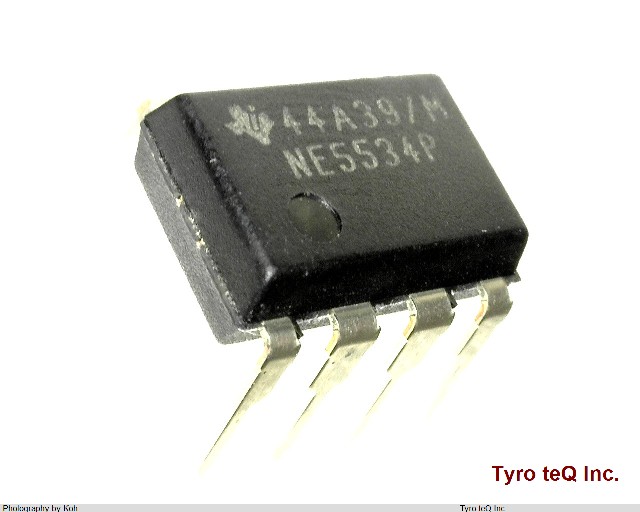

NE5534P データシート

Name: NE5534P
Brand: TI
SKU: 240002663-0000-0000-0000

NE5534P - TI の商品詳細ページです。

２営業日以内に回答いたします

NE5534P の詳細情報

型番	NE5534P
メーカー	TI
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	2 uA
Bias Current-Max (IIB) @25C	1.5 uA
Common-mode Reject Ratio-Min	70 dB
Common-mode Reject Ratio-Nom	100 dB
Frequency Compensation	YES (AVCL>=3)
Input Offset Current-Max (IIO)	0.3 uA
Input Offset Voltage-Max	4000 uV
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e4
Length	6.2 mm
Low-Bias	NO
Low-Offset	NO
Micropower	NO
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-22 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TAPE AND REEL
Peak Reflow Temperature (Cel)	260
Power	YES
Power Supplies	+-5/+-15 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	2 mm
Slew Rate-Nom	13 V/us
Sub Category	Operational Amplifier
Supply Current-Max	8 mA
Supply Voltage Limit-Max	22 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Unity Gain BW-Nom	10000 kHz
Voltage Gain-Min	15000
Width	5.3 mm
