NE5532AP の詳細情報

  • 仕様・詳細
  • メーカー情報

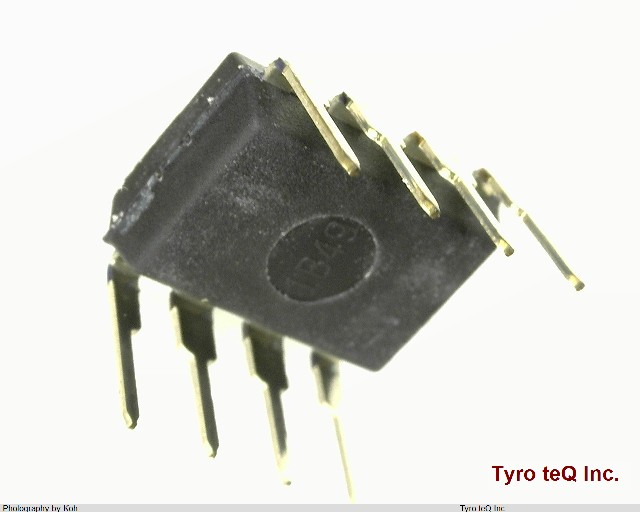

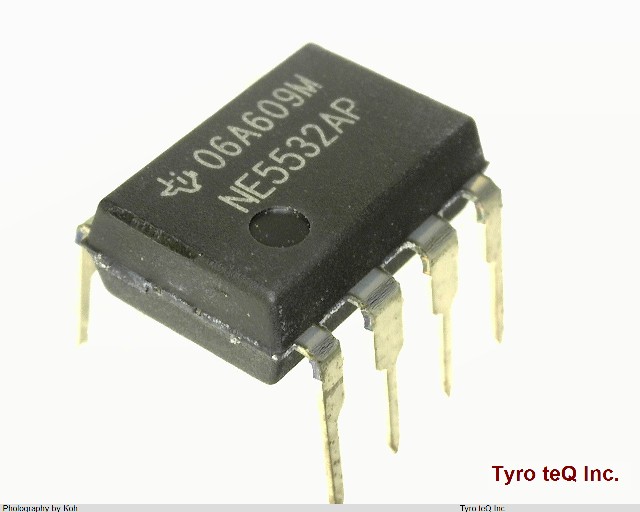

型番NE5532AP
メーカーTI
データシートProduct_list_pdf
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 1 uA
Bias Current-Max (IIB) @25C 0.8 uA
Common-mode Reject Ratio-Min 70 dB
Common-mode Reject Ratio-Nom 100 dB
Frequency Compensation YES
Input Offset Current-Max (IIO) 0.15 uA
Input Offset Voltage-Max 4000 uV
JESD-30 Code R-PDIP-T8
JESD-609 Code e4
Length 6.2 mm
Low-Bias NO
Low-Offset NO
Micropower NO
Moisture Sensitivity Level 1
Neg Supply Voltage Limit-Max -22 V
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Packing Method TAPE AND REEL
Peak Reflow Temperature (Cel) 260
Power YES
Power Supplies +-5/+-15/10/30 V
Programmable Power NO
Qualification Status Not Qualified
Seated Height-Max 2 mm
Slew Rate-Nom 9 V/us
Sub Category Operational Amplifier
Supply Current-Max 16 mA
Supply Voltage Limit-Max 22 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Unity Gain BW-Nom 10000 kHz
Voltage Gain-Min 10000
Width 5.3 mm
