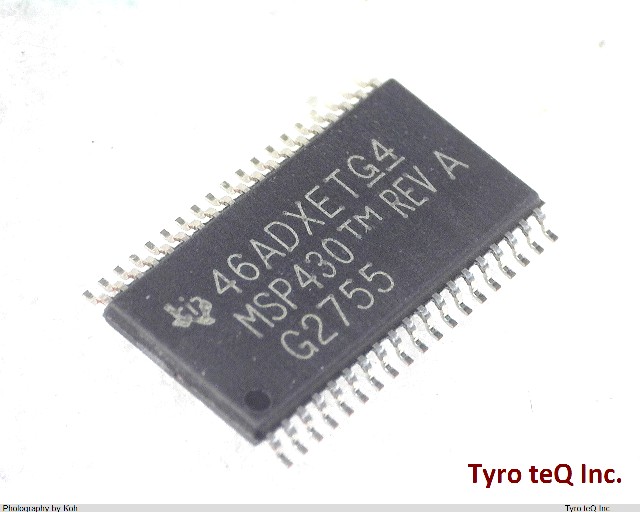

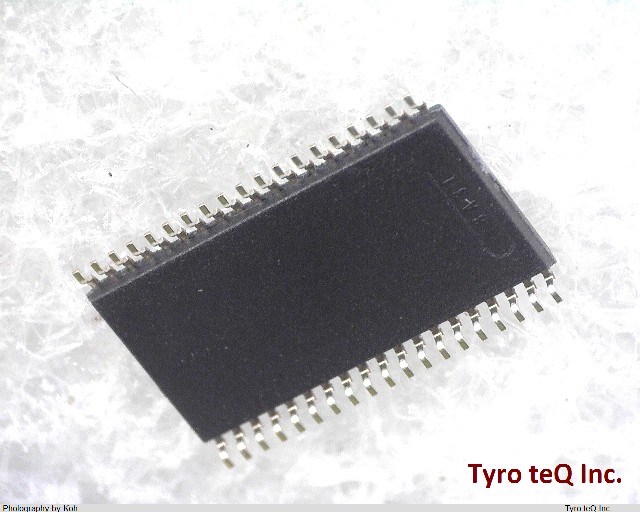

MSP430G2755IDA38

Name: MSP430G2755IDA38
Brand: TI
SKU: 230761859-0000-0000-0000

MSP430G2755IDA38 - TI の商品詳細ページです。

２営業日以内に回答いたします

MSP430G2755IDA38 の詳細情報

型番	MSP430G2755IDA38
メーカー	TI
A/D Converters	12-Ch 10-Bit
ADC Channels	YES
Additional Feature	OPERATES AT 1.8V SUPPLY AT 6 MHZ
Address Bus Width	0
Bit Size	16
Boundary Scan	YES
CPU Family	MSP430
Clock Frequency-Max	16 MHz
Connectivity	I2C, IRDA, LIN, SPI(2), UART
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	0
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	R-PDSO-G38
JESD-609 Code	e4
Length	12.5 mm
Low Power Mode	YES
Moisture Sensitivity Level	2
Number of DMA Channels	0
Number of External Interrupts	0
Number of I/O Lines	32
Number of Serial I/Os	1
Number of Terminals	38
Number of Timers	3
On Chip Data RAM Width	8
On Chip Program ROM Width	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP38,.32
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Peripherals	BOR, COMPARATOR(8), POR, PWM, TIMER(3), WDT
Power Supplies	2/3.3 V
Qualification Status	Not Qualified
RAM (bytes)	4096
RAM (words)	4
ROM (words)	32768
ROM Programmability	FLASH
Seated Height-Max	1.2 mm
Speed	16 rpm
Sub Category	Microcontrollers
Supply Current-Max	0.45 mA
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3.3 V
