MSP430F5249IRGCR Ti

MSP430F5249IRGCR - TI の商品詳細ページです。

1

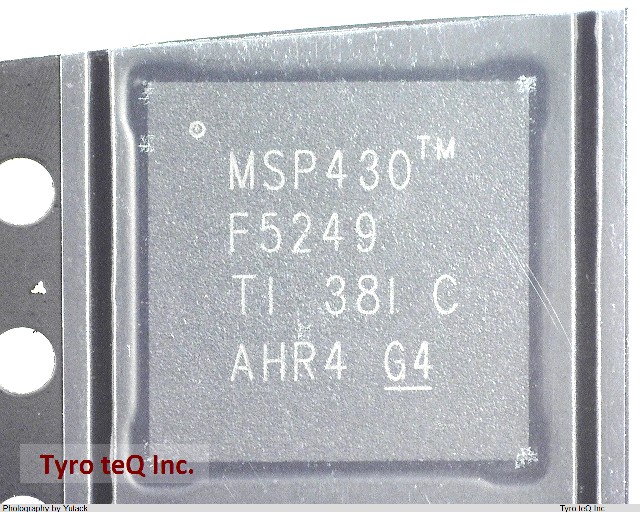

MSP430F5249IRGCR
  • MSP430F5249IRGCR
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

MSP430F5249IRGCR の詳細情報

  • 仕様・詳細
  • メーカー情報
型番MSP430F5249IRGCR
メーカーTI
A/D Converters 12-Ch 10-Bit
ADC Channels YES
Additional Feature ALSO OPERATES AT 1.8 V MINIMUM SUPPLY AT 8 MHZ
Address Bus Width 0
Bit Size 16
Boundary Scan YES
CPU Family MSP430
Clock Frequency-Max 32 MHz
Connectivity IRDA, I2C, SPI(2), UART
DAC Channels NO
DMA Channels YES
Data EEPROM Size 0
External Data Bus Width 0
Integrated Cache NO
JESD-30 Code S-PQCC-N64
JESD-609 Code e4
Length 9 mm
Low Power Mode YES
Moisture Sensitivity Level 3
Number of DMA Channels 3
Number of External Interrupts 16
Number of I/O Lines 53
Number of Terminals 64
On Chip Program ROM Width 8
Operating Temperature-Max 85 Cel
Operating Temperature-Min -40 Cel
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code HVQCCN
Package Equivalence Code LCC64,.35SQ,20
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peripherals BOR, CRC, DMA(3), POR, PWM, RTC, TIMER(4), WDT
Qualification Status Not Qualified
RAM (bytes) 8192
ROM (words) 131072
ROM Programmability FLASH
Seated Height-Max 1 mm
Speed 25 rpm
Supply Current-Max 11 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 2.4 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
会社名称Texas Instruments Incorporated.
設立1930
資本金USD 816 million
所在地12500 TI Boulevard Dallas, Texas 75243 USA
URLhttp://www.ti.com/
