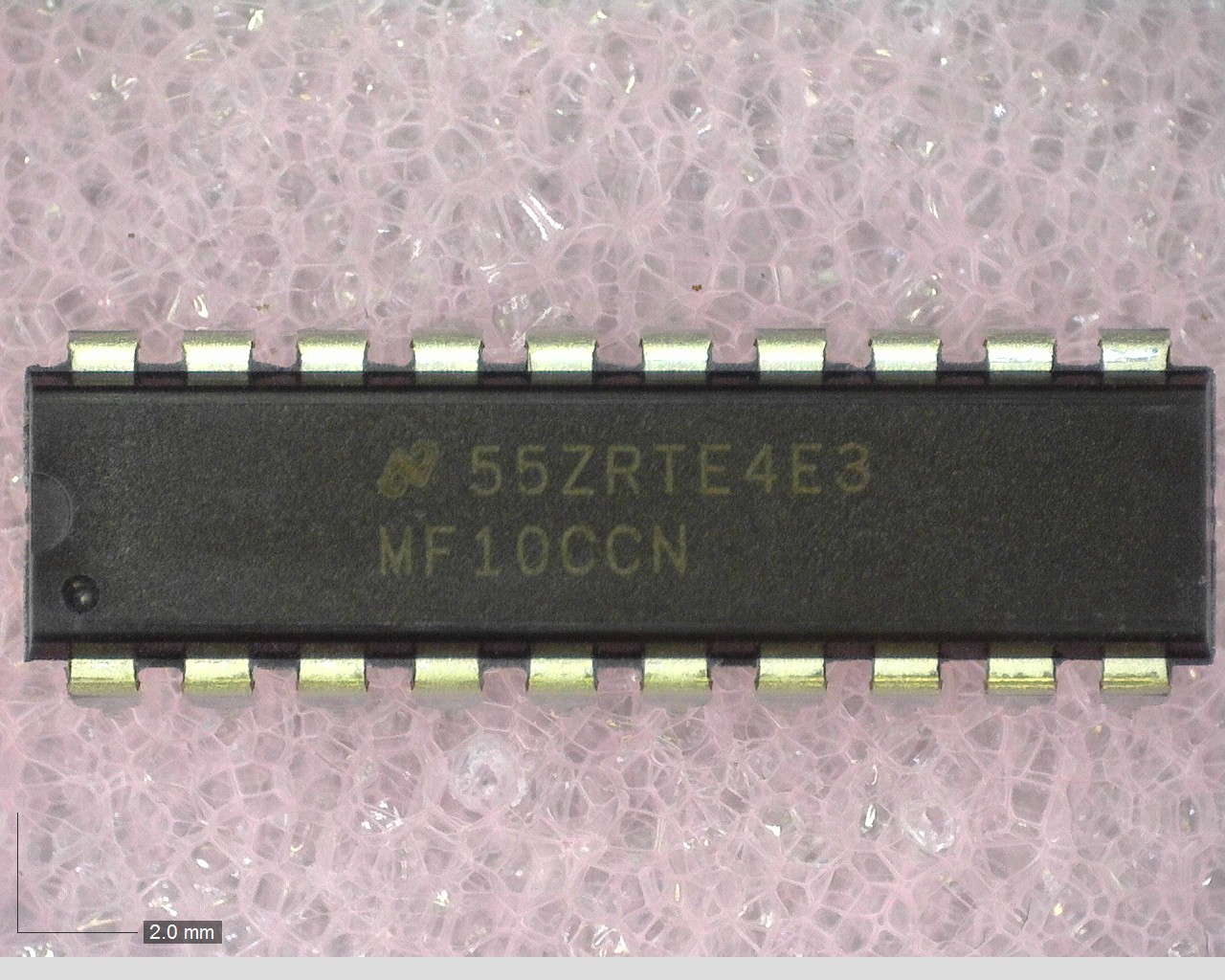

MF10CCN/NOPB

Name: MF10CCN/NOPB
Brand: TI
SKU: 230706843-0000-0000-0000

MF10CCN/NOPB - TI の商品詳細ページです。

２営業日以内に回答いたします

MF10CCN/NOPB の詳細情報

型番	MF10CCN/NOPB
メーカー	TI
Active Filter Type	SWITCHED CAPACITOR FILTER
Additional Feature	CAUER FILTER CONFIGURATION CAN ALSO BE FORMED
Center or Cutoff Freq Rng-Max	20 kHz
Center or Cutoff Freq Rng-Min	0.0002 kHz
JESD-30 Code	R-PDIP-T20
JESD-609 Code	e3
Length	26.075 mm
Moisture Sensitivity Level	1
Neg Supply Voltage-Max (Vsup)	-7 V
Neg Supply Voltage-Min (Vsup)	-4.5 V
Neg Supply Voltage-Nom (Vsup)	-5 V
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Order	2ND
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP20,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Poles and Zeros	2 AND 0
Qualification Status	Not Qualified
Response	UNIVERSAL
Seated Height-Max	5.08 mm
Sub Category	Active Filters
Supply Voltage-Max (Vsup)	7 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Transfer Characteristics	BUTTERWORTH/BESSEL/CHEBYSHEV
Width	7.62 mm
