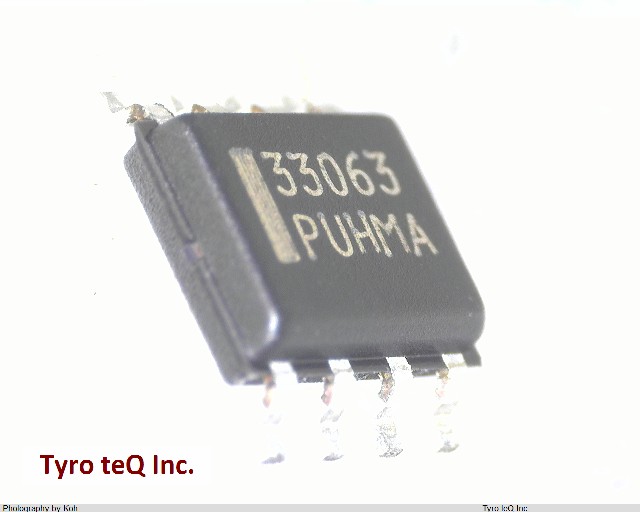

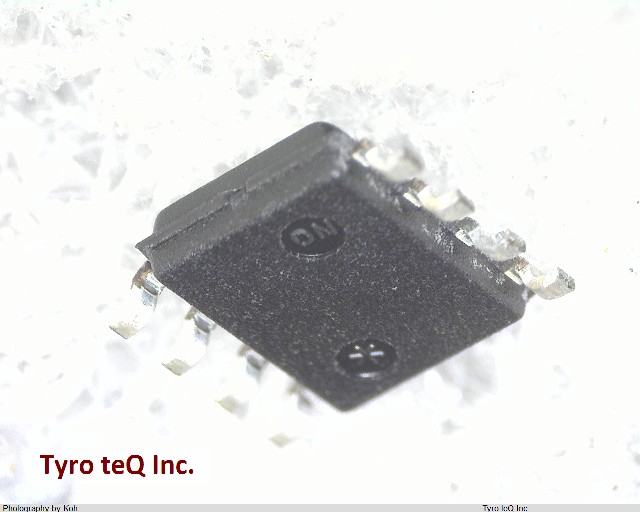

MC33063AD

Name: MC33063AD
Brand: TI
SKU: 230730834-0000-0000-0000

MC33063AD - TI の商品詳細ページです。

２営業日以内に回答いたします

MC33063AD の詳細情報

型番	MC33063AD
メーカー	TI
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	40 V
Input Voltage-Min	3 V
Input Voltage-Nom	5 V
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	1.5 A
Output Voltage-Max	40 V
Output Voltage-Min	1.25 V
Output Voltage-Nom	1.25 V
Package Body Material	PLASTIC/EPOXY
Package Code	HVSON
Package Equivalence Code	SOLCC8,.15,32
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	235
Qualification Status	Not Qualified
Seated Height-Max	0.8 mm
Sub Category	Switching Regulator or Controllers
Supply Current-Max (Isup)	4 mA
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Switcher Configuration	BOOST
Switching Frequency-Max	100 kHz
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.8 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3.9 mm
