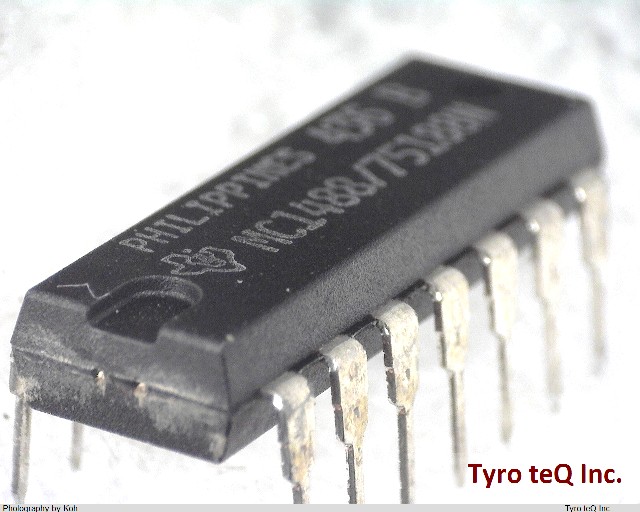

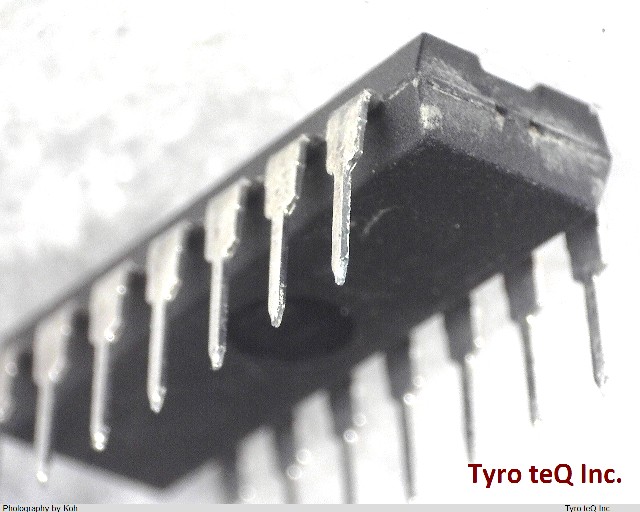

MC1488N

Name: MC1488N
Brand: TI
SKU: 230731057-0000-0000-0000

MC1488N - TI の商品詳細ページです。

２営業日以内に回答いたします

MC1488N の詳細情報

型番	MC1488N
メーカー	TI
Additional Feature	1 SINGLE INPUT DRIVER
Differential Output	NO
Driver Number of Bits	1
High Level Input Current-Max	1.0E-5 Amp
Input Characteristics	GATED
Interface IC Type	LINE DRIVER
Interface Standard	EIA-232-C
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	19.025 mm
Negative Supply Voltage-Nom	-9 V
Number of Functions	1
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Out Swing-Min	12 V
Output Characteristics	OPEN-COLLECTOR
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	+-9 V
Qualification Status	Not Qualified
Receive Delay-Max	0 ns
Seated Height-Max	4.2 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	34 mA
Supply Voltage-Max	9.09 V
Supply Voltage-Min	7.5 V
Supply Voltage-Nom	9 V
Supply Voltage1-Max	-15 V
Supply Voltage1-Min	-8.91 V
Supply Voltage1-Nom	-9 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transmit Delay-Max	175 ns
Width	7.62 mm
