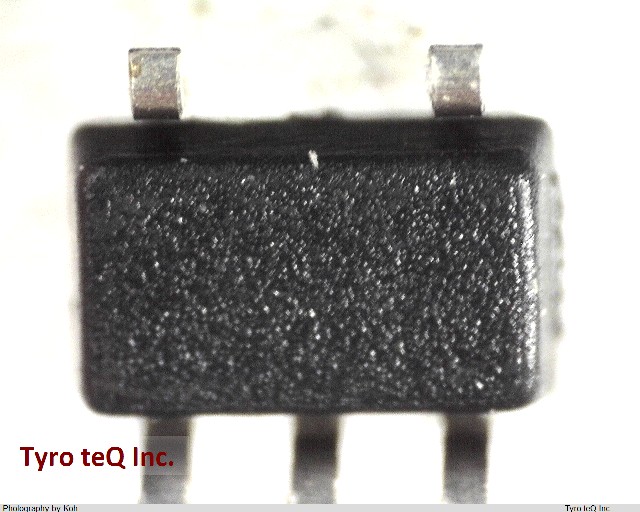

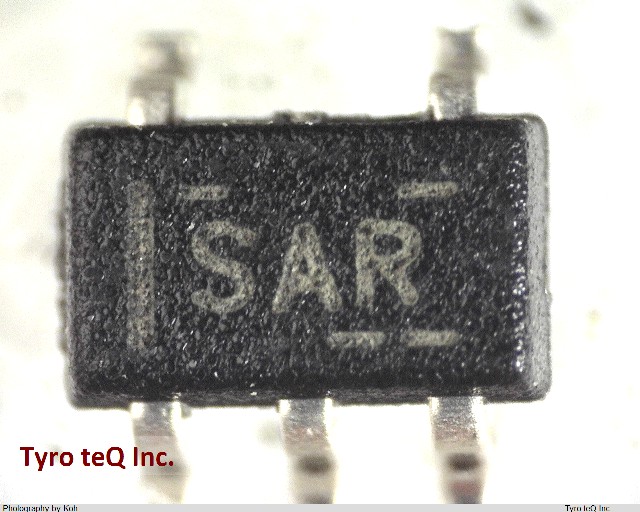

MAX4594DCKR

Name: MAX4594DCKR
Brand: TI
SKU: 230760832-0000-0000-0000

MAX4594DCKR - TI の商品詳細ページです。

２営業日以内に回答いたします

MAX4594DCKR の詳細情報

型番	MAX4594DCKR
メーカー	TI
Analog IC - Other Type	SPST
Bandwidth-Nom	300 kHz
Input Voltage-Max	5.5 V
Input Voltage-Min	0 V
JESD-30 Code	R-PDSO-G5
JESD-609 Code	e4
Length	2 mm
Moisture Sensitivity Level	1
Normal Position	NO V
Number of Channels	1
Number of Functions	1
Number of Terminals	5
Off-state Isolation-Nom	80 dB
On-state Resistance-Max (Ron)	20 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP5/6,.08
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3/5 V
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	0.001 mA
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2.7 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Switch-off Time-Max	50 ns
Switch-on Time-Max	45 ns
Switching	BREAK-BEFORE-MAKE V
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	1.25 mm
