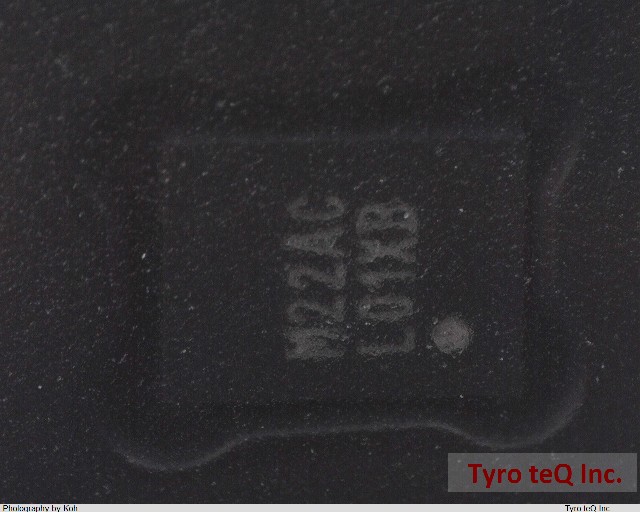

LP3981ILD-3.3/NOPB

Name: LP3981ILD-3.3/NOPB
Brand: TI
SKU: 220190092-0000-0000-0000

LP3981ILD-3.3/NOPB - TI の商品詳細ページです。

２営業日以内に回答いたします

LP3981ILD-3.3/NOPB の詳細情報

型番	LP3981ILD-3.3/NOPB
メーカー	TI
Adjustability	FIXED
Dropout Voltage1-Max	0.2 V
Dropout Voltage1-Nom	0.132 V
Input Voltage Absolute-Max	6.5 V
Input Voltage-Max	6 V
Input Voltage-Min	2.7 V
JESD-30 Code	R-PDSO-N6
JESD-609 Code	e3
Length	4 mm
Line Regulation-Max	0.01452 %
Load Regulation-Max	0.049 %
Moisture Sensitivity Level	3
Number of Functions	1
Number of Outputs	1
Number of Terminals	6
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-40 Cel
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current1-Max	0.3 A
Output Voltage1-Max	3.399 V
Output Voltage1-Min	3.201 V
Output Voltage1-Nom	3.3 V
Package Body Material	PLASTIC/EPOXY
Package Code	HVSON
Package Equivalence Code	SOLCC6,.15,32
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	0.8 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	CMOS
Terminal Finish	Matte Tin (Sn)
Terminal Form	NO LEAD
Terminal Pitch	0.8 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Voltage Tolerance-Max	3 %
Width	3 mm
