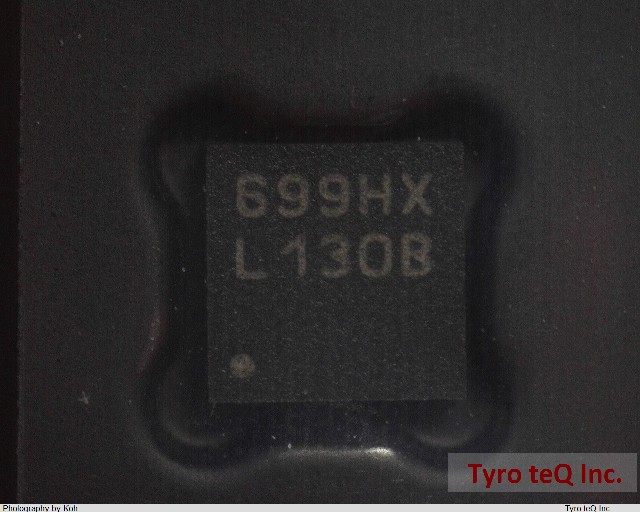

LP38693SD-3.3/NOPB

Name: LP38693SD-3.3/NOPB
Brand: TI
SKU: 220223789-0000-0000-0000

LP38693SD-3.3/NOPB - TI の商品詳細ページです。

２営業日以内に回答いたします

LP38693SD-3.3/NOPB の詳細情報

型番	LP38693SD-3.3/NOPB
メーカー	TI
Adjustability	FIXED
Dropout Voltage1-Max	0.55 V
Dropout Voltage1-Nom	0.25 V
Input Voltage Absolute-Max	12 V
Input Voltage-Max	10 V
Input Voltage-Min	2.7 V
JESD-30 Code	S-XDSO-N6
JESD-609 Code	e3
Length	3 mm
Load Regulation-Max	0.0825 %
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	6
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	-40 Cel
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current1-Max	0.5 A
Output Voltage1-Max	3.432 V
Output Voltage1-Min	3.168 V
Output Voltage1-Nom	3.3 V
Package Body Material	UNSPECIFIED
Package Code	HVSSON
Package Equivalence Code	SOLCC6,.13,38
Package Shape	SQUARE
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	0.8 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	CMOS
Terminal Finish	Matte Tin (Sn)
Terminal Form	NO LEAD
Terminal Pitch	0.95 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Voltage Tolerance-Max	4 %
Width	3 mm
