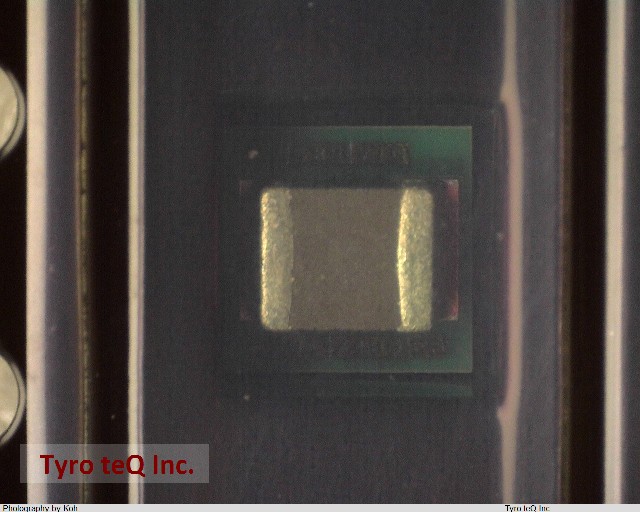

LMZ21701SILT

Name: LMZ21701SILT
Brand: TI
SKU: 220200819-0000-0000-0000

LMZ21701SILT - TI の商品詳細ページです。

２営業日以内に回答いたします

LMZ21701SILT の詳細情報

型番	LMZ21701SILT
メーカー	TI
Additional Feature	OUTPUT IN ADJUSTABLE MODE IS 0.9V TO 6V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT/VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	17 V
Input Voltage-Min	3 V
Input Voltage-Nom	12 V
JESD-30 Code	S-XDMA-B8
JESD-609 Code	e4
Length	3.5 mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Outputs	1
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	1 A
Output Voltage-Max	6 V
Output Voltage-Min	0.9 V
Package Body Material	UNSPECIFIED
Package Shape	SQUARE
Package Style	MICROELECTRONIC ASSEMBLY Meter
Peak Reflow Temperature (Cel)	260
Seated Height-Max	1.75 mm
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	2500 kHz
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Gold (Ni/Au)
Terminal Form	BUTT
Terminal Pitch	0.8 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	3.5 mm
