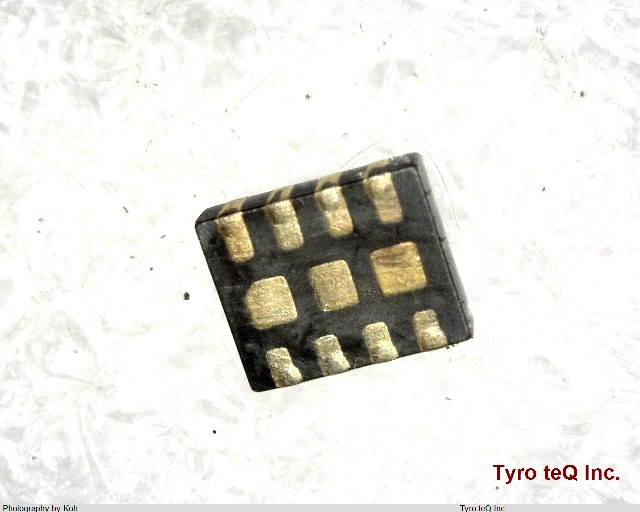

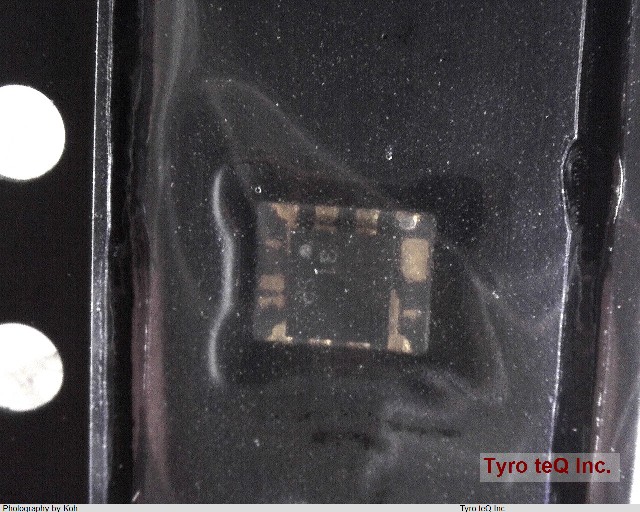

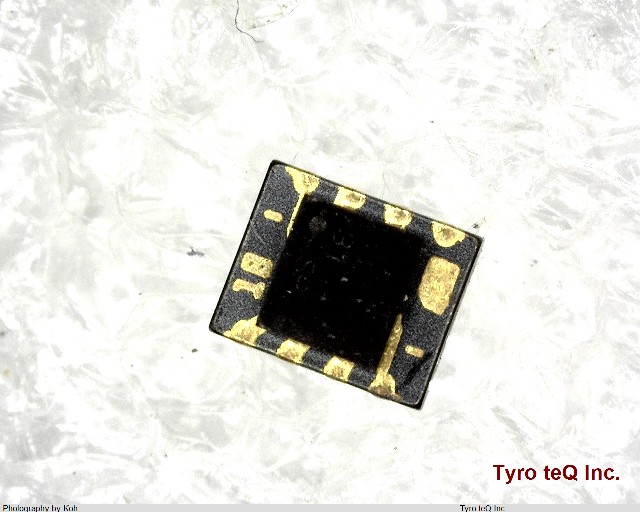

LMZ10501SHE/NOPB データシート

Name: LMZ10501SHE/NOPB
Brand: TI
SKU: 220189801-0000-0000-0000

LMZ10501SHE/NOPB - TI の商品詳細ページです。

２営業日以内に回答いたします

LMZ10501SHE/NOPB の詳細情報

型番	LMZ10501SHE/NOPB
メーカー	TI
データシート
Additional Feature	ADJUSTABLE OUTPUT MODE FROM 0.6 TO 3.6V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	5.5 V
Input Voltage-Min	2.7 V
Input Voltage-Nom	3.6 V
JESD-30 Code	R-PBGA-B8
Length	3 mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	1 A
Package Body Material	PLASTIC/EPOXY
Package Code	LFBGA
Package Equivalence Code	SOLCC8,.11,25
Package Shape	RECTANGULAR
Package Style	GRID ARRAY, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.425 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	2250 kHz
Temperature Grade	INDUSTRIAL
Terminal Form	BALL
Terminal Pitch	0.65 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	2.5 mm
