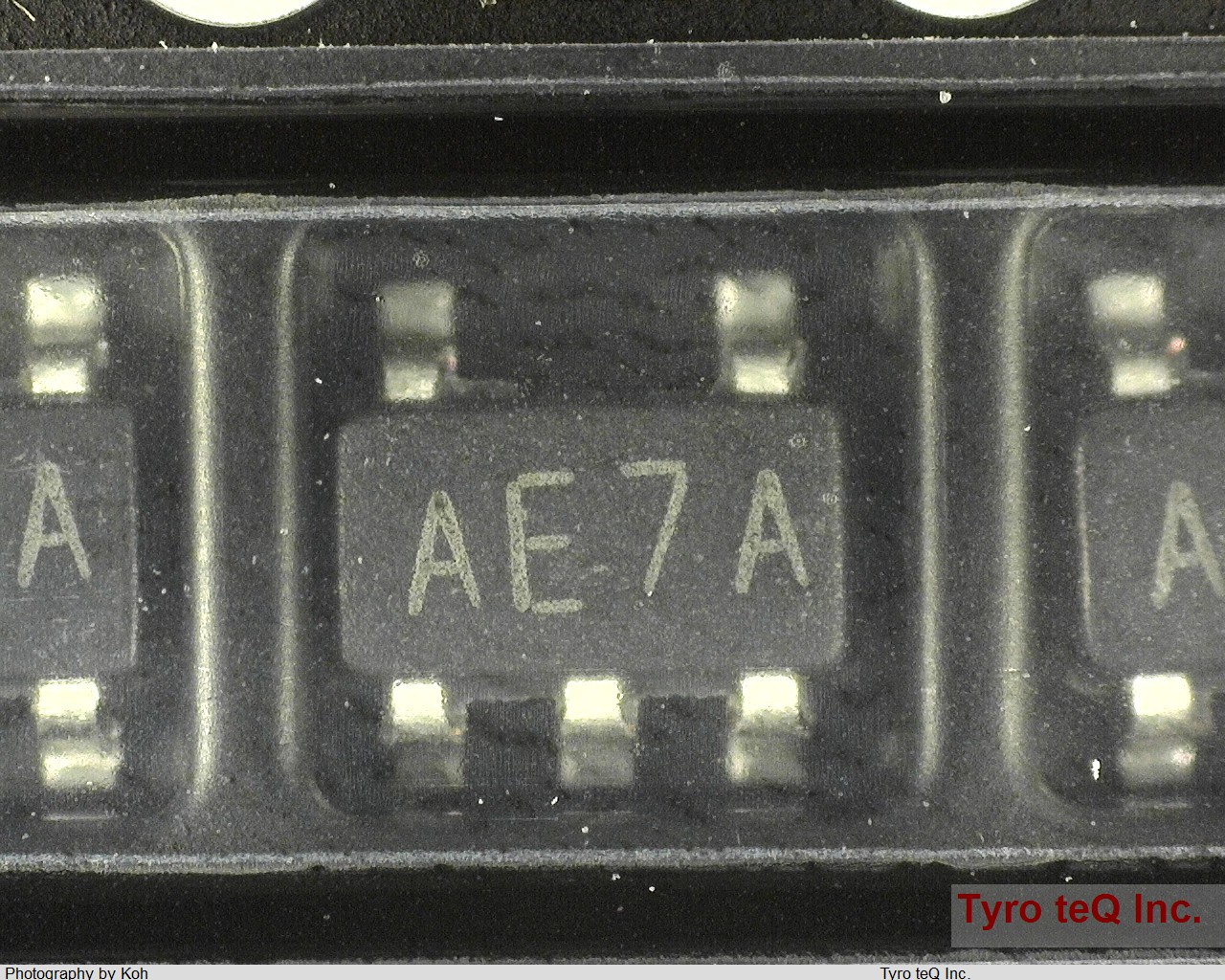

LMH6629MFE/NOPB Ti

LMH6629MFE/NOPB - TI の商品詳細ページです。

1
No Image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

LMH6629MFE/NOPB の詳細情報

  • 仕様・詳細
  • メーカー情報
型番LMH6629MFE/NOPB
メーカーTI
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) -35 uA
Bandwidth (3dB)-Nom 190 MHz
Bias Current-Max (IIB) @25C 0.023 uA
Common-mode Reject Ratio-Min 82 dB
Common-mode Reject Ratio-Nom 87 dB
Frequency Compensation YES (AVCL>=10)
Input Offset Current-Max (IIO) 1.8 uA
Input Offset Voltage-Max 780 uV
JESD-30 Code R-PDSO-G5
JESD-609 Code e3
Length 2.9 mm
Low-Bias NO
Low-Offset YES
Micropower NO
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 5
Operating Temperature-Max 125 Cel
Operating Temperature-Min -40 Cel
Package Body Material PLASTIC/EPOXY
Package Code LSSOP
Package Equivalence Code TSOP5/6,.11,37
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Packing Method TAPE AND REEL
Peak Reflow Temperature (Cel) 260
Power NO
Power Supplies 3.3/5 V
Programmable Power NO
Qualification Status Not Qualified
Seated Height-Max 1.45 mm
Slew Rate-Nom 1100 V/us
Sub Category Operational Amplifier
Supply Current-Max 16.7 mA
Supply Voltage Limit-Max 6 V
Supply Voltage-Nom (Vsup) 3.3 V
Surface Mount YES
Technology BIPOLAR
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.95 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Unity Gain BW-Nom 4000000 kHz
Wideband YES
Width 1.6 mm
