LMH6601MG/NOPB Ti

LMH6601MG/NOPB - TI の商品詳細ページです。

1

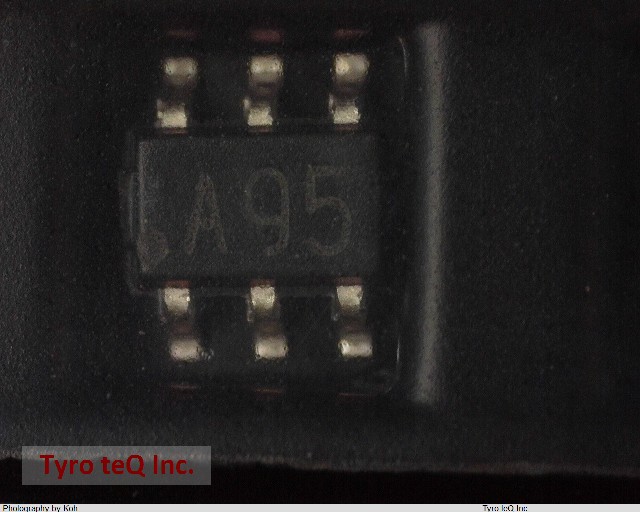

LMH6601MG/NOPB
  • LMH6601MG/NOPB
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

LMH6601MG/NOPB の詳細情報

  • 仕様・詳細
  • メーカー情報
型番LMH6601MG/NOPB
メーカーTI
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 5.0E-5 uA
Bandwidth (3dB)-Nom 73 MHz
Bias Current-Max (IIB) @25C 5.0E-5 uA
Common-mode Reject Ratio-Min 56 dB
Common-mode Reject Ratio-Nom 68 dB
Frequency Compensation YES
Input Offset Current-Max (IIO) 2.5E-5 uA
Input Offset Voltage-Max 2400 uV
JESD-30 Code R-PDSO-G6
JESD-609 Code e3
Length 2 mm
Low-Bias YES
Low-Offset NO
Micropower NO
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 6
Operating Temperature-Max 85 Cel
Operating Temperature-Min -40 Cel
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP6,.08
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method TAPE AND REEL
Peak Reflow Temperature (Cel) 260
Power NO
Power Supplies 2.7/5 V
Programmable Power NO
Qualification Status Not Qualified
Screening Level AEC-Q100
Seated Height-Max 1.1 mm
Slew Rate-Nom 275 V/us
Sub Category Operational Amplifier
Supply Current-Max 11.5 mA
Supply Voltage Limit-Max 6 V
Supply Voltage-Nom (Vsup) 2.7 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.635 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Unity Gain BW-Nom 150000 kHz
Voltage Gain-Min 630
Wideband YES
会社名称Texas Instruments Incorporated.
設立1930
資本金USD 816 million
所在地12500 TI Boulevard Dallas, Texas 75243 USA
URLhttp://www.ti.com/
