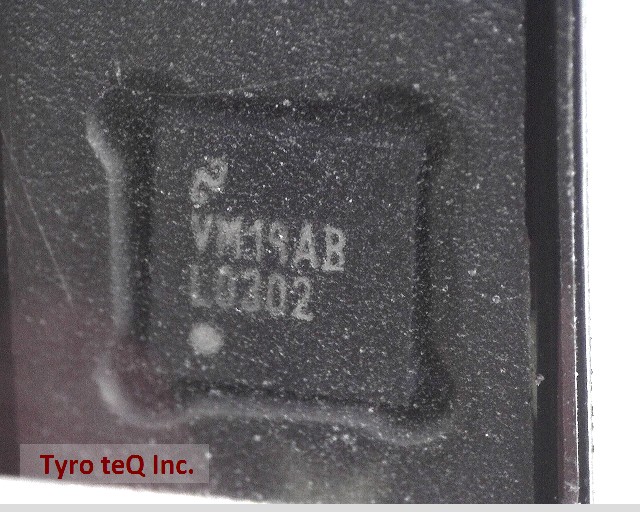

LMH0302SQE/NOPB

Name: LMH0302SQE/NOPB
Brand: TI
SKU: 220189575-0000-0000-0000

LMH0302SQE/NOPB - TI の商品詳細ページです。

２営業日以内に回答いたします

LMH0302SQE/NOPB の詳細情報

型番	LMH0302SQE/NOPB
メーカー	TI
Differential Output	YES
Driver Number of Bits	1
Input Characteristics	DIFFERENTIAL
Interface IC Type	LINE DRIVER
Interface Standard	GENERAL PURPOSE
JESD-30 Code	S-PQCC-N16
JESD-609 Code	e3
Length	4 mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Out Swing-Min	0.72 V
Output Characteristics	DIFFERENTIAL
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	HVQCCN
Package Equivalence Code	LCC16,.16SQ,25
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Qualification Status	Not Qualified
Receive Delay-Max	0 ns
Seated Height-Max	0.8 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	59 mA
Supply Voltage-Max	3.465 V
Supply Voltage-Min	3.135 V
Supply Voltage-Nom	3.3 V
Supply Voltage1-Max	3.46 V
Supply Voltage1-Min	3.13 V
Supply Voltage1-Nom	3.3 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	NO LEAD
Terminal Pitch	0.635 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	4 mm
