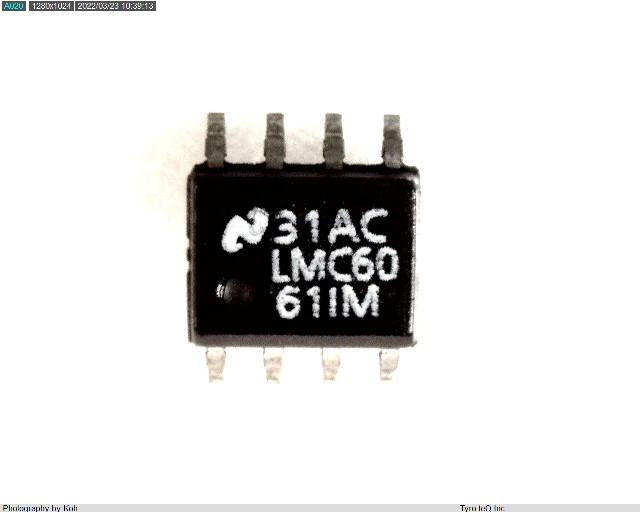

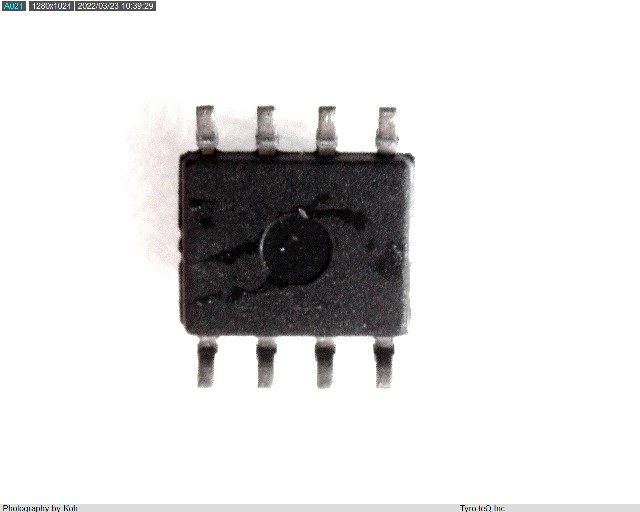

LMC6061-IM データシート

Name: LMC6061-IM
Brand: TI
SKU: 400033708-0000-0000-0000

LMC6061-IM - TI の商品詳細ページです。

２営業日以内に回答いたします

LMC6061-IM の詳細情報

型番	LMC6061-IM
メーカー	TI
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	4.0E-6 uA
Bias Current-Max (IIB) @25C	1.0E-7 uA
Common-mode Reject Ratio-Min	63 dB
Common-mode Reject Ratio-Nom	85 dB
Frequency Compensation	YES
Input Offset Voltage-Max	350 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.9 mm
Low-Bias	YES
Low-Offset	NO
Micropower	YES
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	0 V
Neg Supply Voltage-Nom (Vsup)	0 V
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	DIE OR CHIP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TAPE AND REEL
Peak Reflow Temperature (Cel)	235
Power	NO
Power Supplies	5/15 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Slew Rate-Min	0.007 V/us
Slew Rate-Nom	0.035 V/us
Sub Category	Operational Amplifier
Supply Current-Max	0.024 mA
Supply Voltage Limit-Max	16 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	100 kHz
Voltage Gain-Min	35000
Wideband	NO
