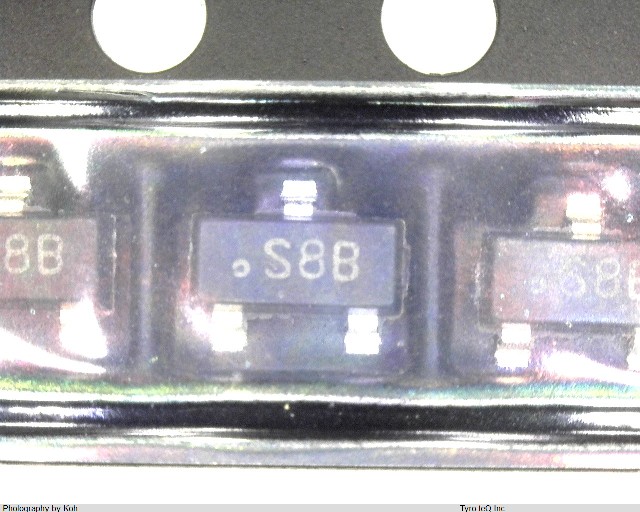

LM809M3-4.63/NOPB

Name: LM809M3-4.63/NOPB
Brand: TI
SKU: 220190546-0000-0000-0000

LM809M3-4.63/NOPB - TI の商品詳細ページです。

２営業日以内に回答いたします

LM809M3-4.63/NOPB の詳細情報

型番	LM809M3-4.63/NOPB
メーカー	TI
Additional Feature	POWER-ON RESET
Adjustable Threshold	NO
Analog IC - Other Type	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 Code	R-PDSO-G3
JESD-609 Code	e3
Length	2.9 mm
Moisture Sensitivity Level	1
Number of Channels	1
Number of Functions	1
Number of Terminals	3
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSOP
Package Equivalence Code	TO-236
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	1.2/5.5 V
Qualification Status	Not Qualified
Seated Height-Max	1.041 mm
Sub Category	Power Management Circuits
Supply Current-Max (Isup)	0.1 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	1 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Position	DUAL
Threshold Voltage-Nom	+4.63V V
Time@Peak Reflow Temperature-Max (s)	40
Width	1.3 mm
