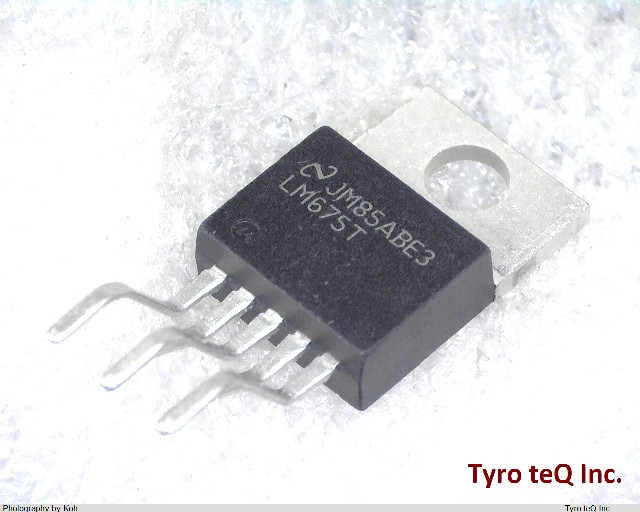

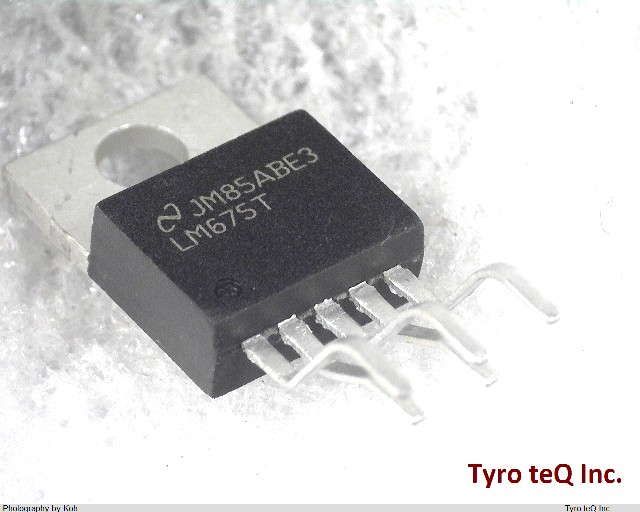

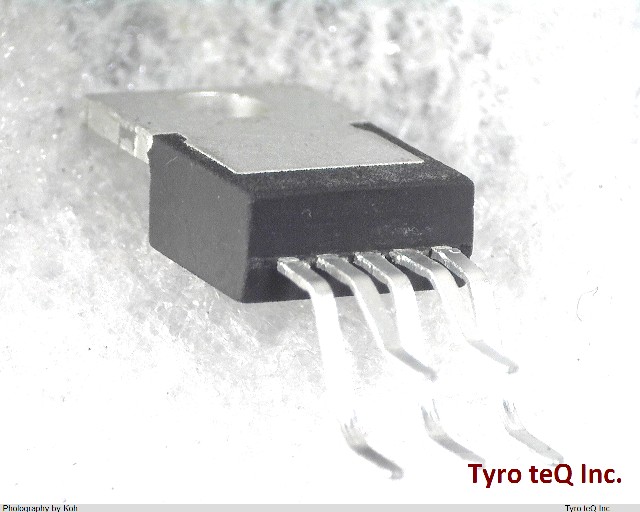

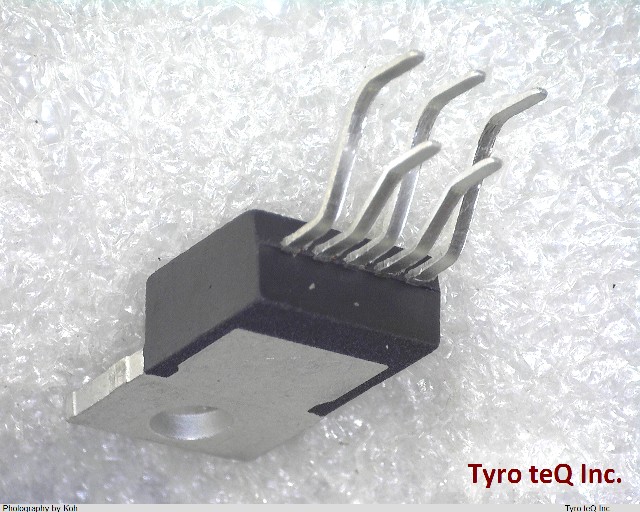

LM675T/NOPB

Name: LM675T/NOPB
Brand: TI
SKU: 220190479-0000-0000-0000

LM675T/NOPB - TI の商品詳細ページです。

２営業日以内に回答いたします

LM675T/NOPB の詳細情報

型番	LM675T/NOPB
メーカー	TI
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	2 uA
Bias Current-Max (IIB) @25C	2 uA
Common-mode Reject Ratio-Min	70 dB
Common-mode Reject Ratio-Nom	90 dB
Frequency Compensation	YES
Input Offset Current-Max (IIO)	0.5 uA
Input Offset Voltage-Max	10000 uV
JESD-30 Code	R-PZFM-T5
JESD-609 Code	e3
Length	14.986 mm
Low-Bias	NO
Low-Offset	NO
Micropower	NO
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-30 V
Neg Supply Voltage-Nom (Vsup)	-25 V
Number of Functions	1
Number of Terminals	5
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	ZFM
Package Equivalence Code	ZIP5,.15,.2,67TB
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	260
Power	YES
Power Supplies	+-25 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	4.7 mm
Slew Rate-Nom	8 V/us
Sub Category	Operational Amplifier
Supply Current-Max	50 mA
Supply Voltage Limit-Max	30 V
Supply Voltage-Nom (Vsup)	25 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	1.7 mm
Terminal Position	ZIG-ZAG
Time@Peak Reflow Temperature-Max (s)	40
Unity Gain BW-Nom	5500 kHz
Voltage Gain-Min	3160
Wideband	NO
