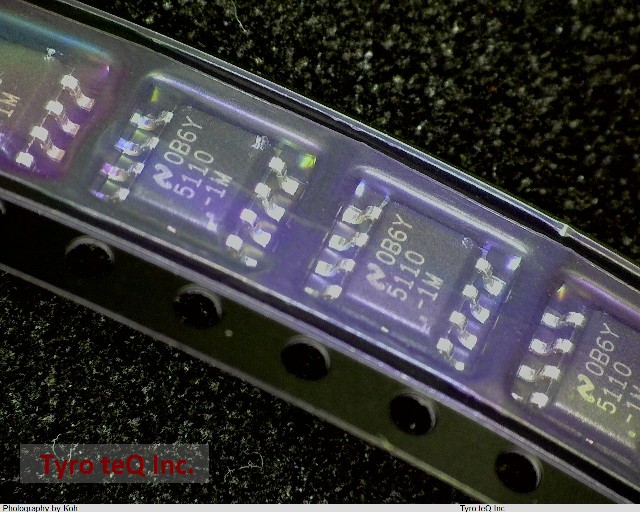

LM5110-1MX/NOPB

Name: LM5110-1MX/NOPB
Brand: TI
SKU: 220200907-0000-0000-0000

LM5110-1MX/NOPB - TI の商品詳細ページです。

２営業日以内に回答いたします

LM5110-1MX/NOPB の詳細情報

型番	LM5110-1MX/NOPB
メーカー	TI
Built-in Protections	UNDER VOLTAGE
High Side Driver	NO
Interface IC Type	BUFFER OR INVERTER BASED MOSFET DRIVER
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current Flow Direction	SOURCE AND SINK
Output Current-Max	5 A
Output Peak Current Limit-Nom	5 A
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Supply Voltage-Max	14 V
Supply Voltage-Min	3.5 V
Supply Voltage-Nom	12 V
Surface Mount	YES
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Turn-off Time	0.04 us
Turn-on Time	0.04 us
Width	3.9 mm
