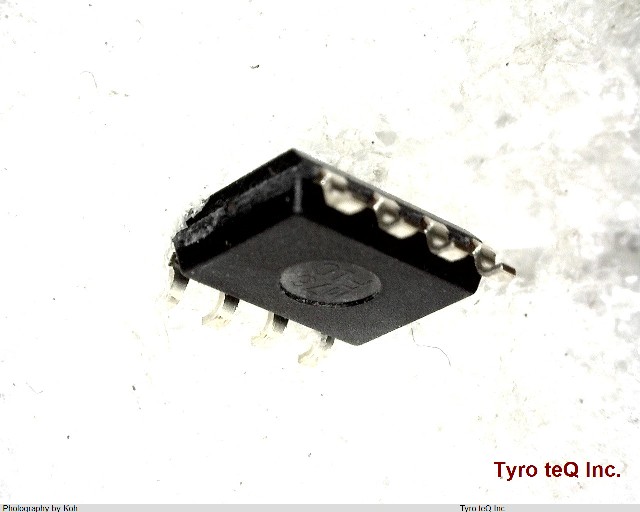

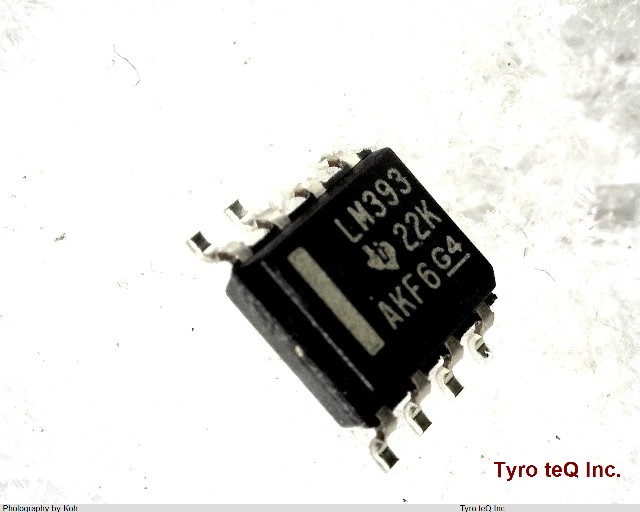

LM393D

Name: LM393D
Brand: TI
SKU: 220000193-0000-0000-0000

LM393D - TI の商品詳細ページです。

２営業日以内に回答いたします

LM393D の詳細情報

型番	LM393D
メーカー	TI
Amplifier Type	COMPARATOR
Average Bias Current-Max (IIB)	-0.4 uA
Bias Current-Max (IIB) @25C	0.025 uA
Input Offset Voltage-Max	5000 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	3 mm
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-20 V
Neg Supply Voltage-Nom (Vsup)	0 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
Output Type	OPEN-COLLECTOR
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	235
Power Supplies	+-1/+-18/2/36 V
Qualification Status	Not Qualified
Response Time-Nom	1300 ns
Seated Height-Max	1.1 mm
Sub Category	Comparator
Supply Current-Max	1 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	10
Width	3 mm
