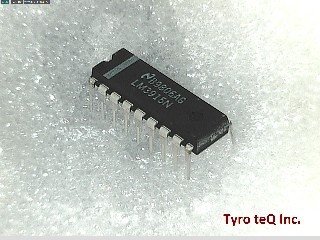

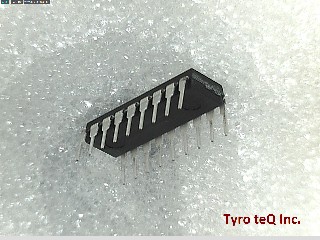

LM3915N データシート

Name: LM3915N
Brand: TI
SKU: 220020481-0000-0000-0000

LM3915N - TI の商品詳細ページです。

２営業日以内に回答いたします

LM3915N の詳細情報

型番	LM3915N
メーカー	TI
データシート
Additional Feature	BARGRAPH
Data Input Mode	PARALLEL
Display Mode	BAR GRAPH
Input Characteristics	STANDARD
Interface IC Type	LED DISPLAY DRIVER
JESD-30 Code	R-PDIP-T18
JESD-609 Code	e0
Length	21.78 mm
Moisture Sensitivity Level	1
Multiplexed Display Capability	NO
Number of Digits/Characters	10-DIGIT
Number of Functions	1
Number of Segments	10
Number of Terminals	18
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Characteristics	OPEN-COLLECTOR
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP18,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Display Drivers
Supply Voltage-Max	20 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	5 V
Supply Voltage1-Max	20 V
Supply Voltage1-Min	3 V
Supply Voltage1-Nom	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Width	7.62 mm
