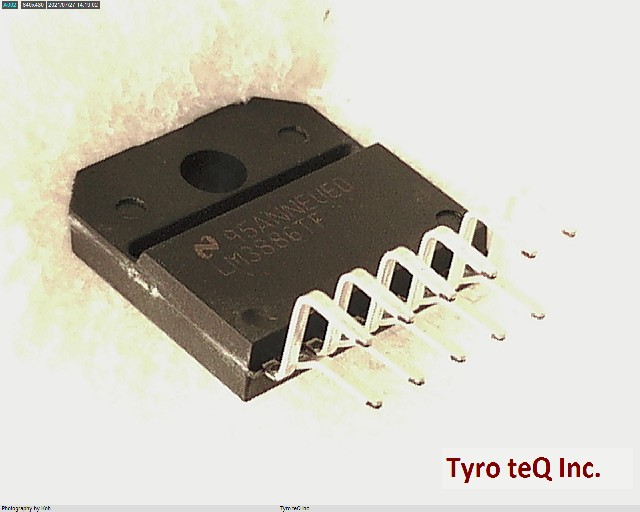

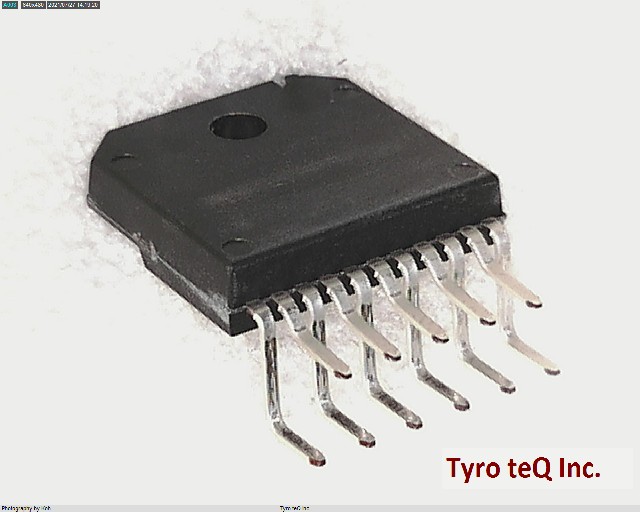

LM3886TF/NOPB
1
-
- 個
２営業日以内に回答いたします
LM3886TF/NOPB の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | LM3886TF/NOPB |
|---|---|
| メーカー | TI |
| Bandwidth-Nom | 20 kHz |
| Consumer IC Type | AUDIO AMPLIFIER |
| Gain | 26 dB |
| JESD-30 Code | R-PZFM-T11 |
| JESD-609 Code | e3 |
| Length | 20.015 mm |
| Moisture Sensitivity Level | 1 |
| Noise Figure-Nom | 110 dB |
| Number of Channels | 1 |
| Number of Functions | 1 |
| Number of Terminals | 11 |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | -20 Cel |
| Output Power-Nom | 68 W |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | ZFM |
| Package Equivalence Code | ZIP11,.2,.17,67TB |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT Meter |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.62 mm |
| Sub Category | Audio/Video Amplifiers |
| Supply Current-Max | 85 mA |
| Supply Voltage-Max (Vsup) | 42 V |
| Supply Voltage-Min (Vsup) | 10 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 1.7 mm |
| Terminal Position | ZIG-ZAG |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Width | 19.583 mm |
| 会社名称 | Texas Instruments Incorporated. |
|---|---|
| 設立 | 1930 |
| 資本金 | USD 816 million |
| 所在地 | 12500 TI Boulevard Dallas, Texas 75243 USA |
| URL | http://www.ti.com/ |
