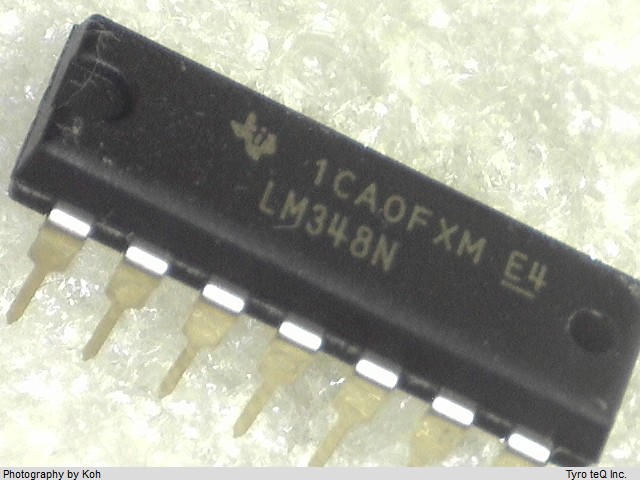

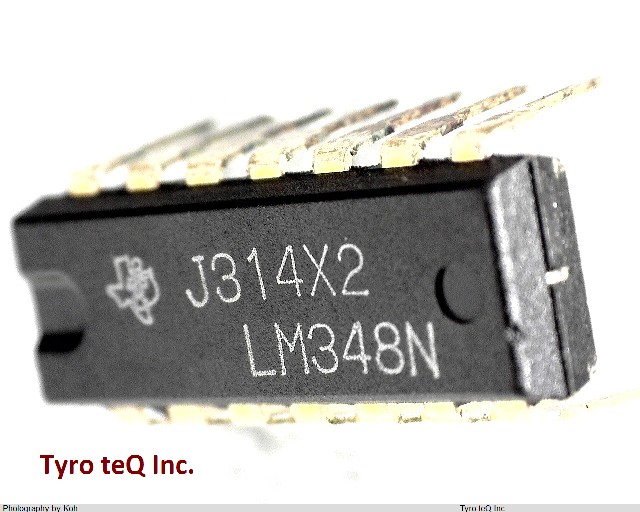

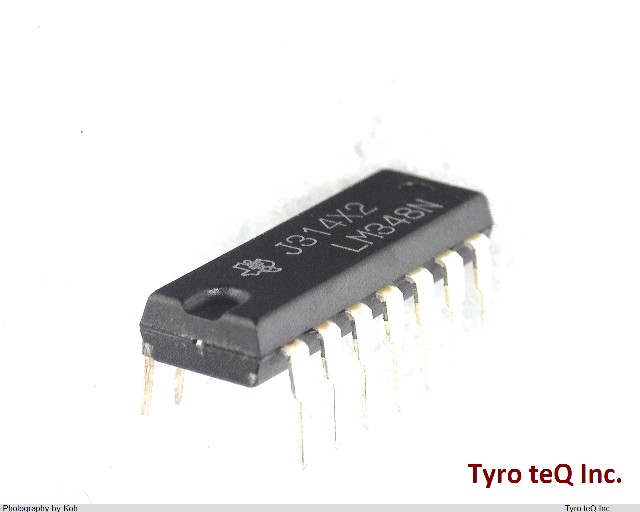

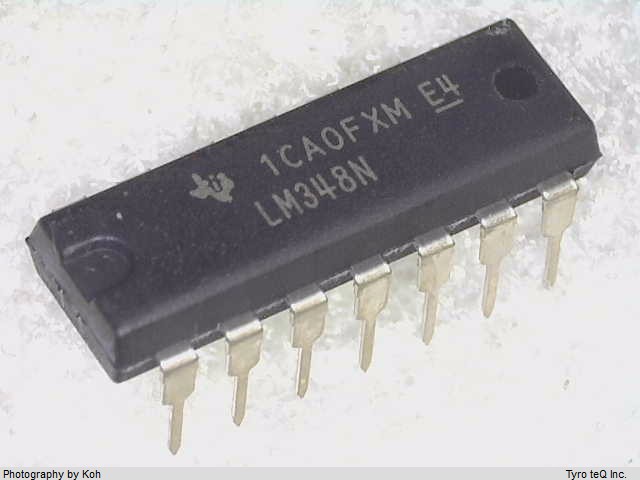

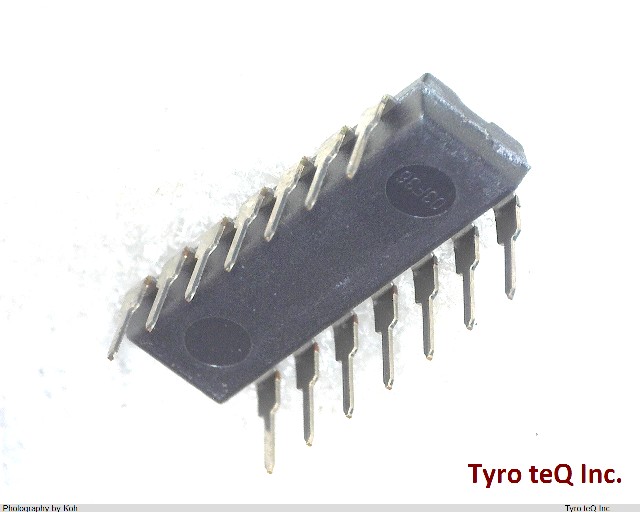

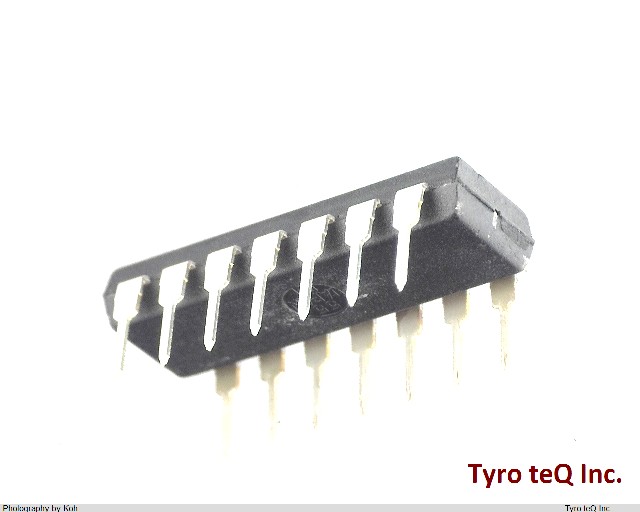

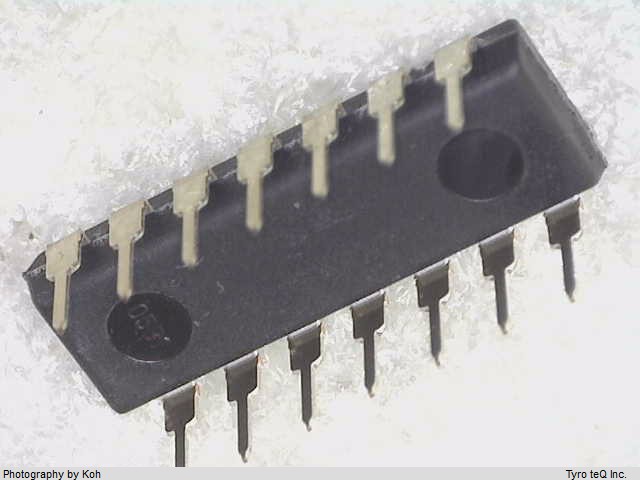

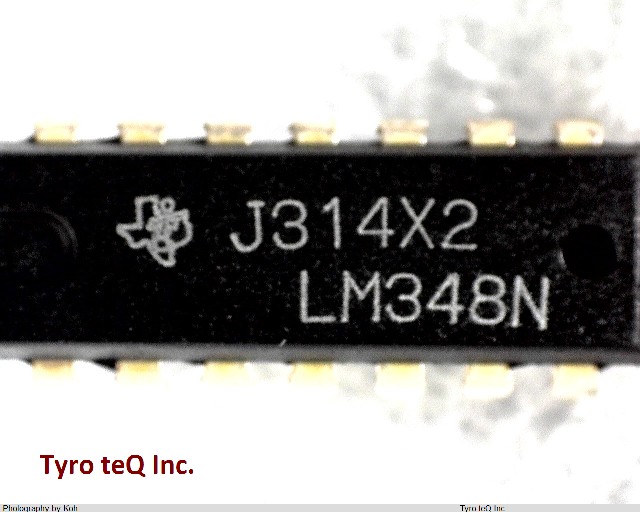

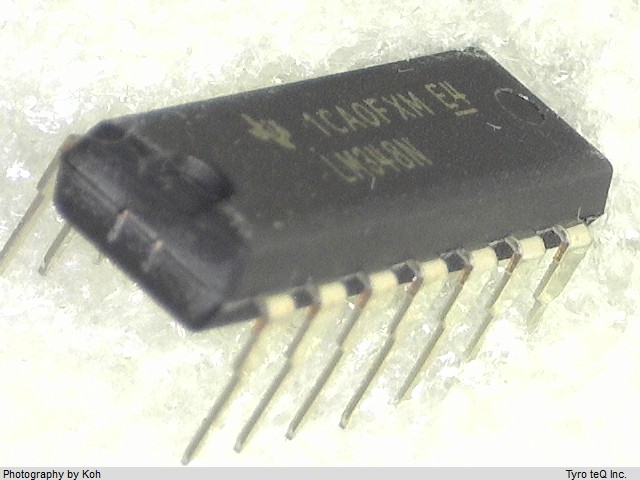

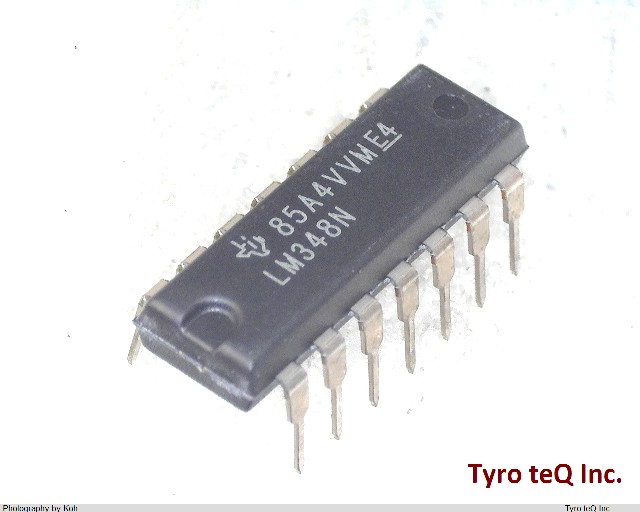

LM348N

Name: LM348N
Brand: TI
SKU: 220204437-0000-0000-0000

LM348N - TI の商品詳細ページです。

２営業日以内に回答いたします

この商品のお問い合わせ

LM348N の詳細情報

仕様・詳細
メーカー情報

型番	LM348N
メーカー	TI
カテゴリ	アンプ
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.2 uA
Bias Current-Max (IIB) @25C	0.1 uA
CMRR(Min)(dB)	70
Common-mode Reject Ratio-Min	70 dB
Common-mode Reject Ratio-Nom	90 dB
Description	Quad 741 Op Amp
Estimated Package Size (WxL)(mm2)	[pf]14SOIC[/pf]: 3.91 x 8.65: 51 mm2, [pf]14PDIP[/pf]: 6.35 x 19.177: 160 mm2
Frequency Compensation	YES
GBW(Typ)(MHz)	1
IIB(Max)(pA)	400000
Input Offset Current-Max (IIO)	0.05 uA
Input Offset Voltage-Max	6000 uV
Io(Typ)(mA)	25
Iq per channel(Max)(mA)	1.13
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	10.2 mm
Low-Bias	NO
Low-Offset	NO
Micropower	NO
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-22 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Channels(#)	4
Number of Functions	4
Number of Terminals	14
Offset Drift(Typ)(uV/C)
Operating Temperature Range(C)	0 to 70
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	RAIL
Peak Reflow Temperature (Cel)	260
Power	NO
Power Supplies	+-15 V
Programmable Power	NO
Qualification Status	Not Qualified
Rating	Catalog
Seated Height-Max	2 mm
Slew Rate(Typ)(V/us)	0.5
Slew Rate-Nom	0.5 V/us
Status	ACTIVE
Sub Category	Operational Amplifier
Supply Current-Max	4.5 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Total Supply Voltage(Max)(+5V=5, +/-5V=10)	36
Total Supply Voltage(Min)(+5V=5, +/-5V=10)	10
Unity Gain BW-Nom	1000 kHz
Vn at 1kHz(Typ)(nV/rtHz)	60
Voltage Gain-Min	15000
Vos (Offset Voltage @ 25C)(Max)(mV)	6
Width	5.3 mm
