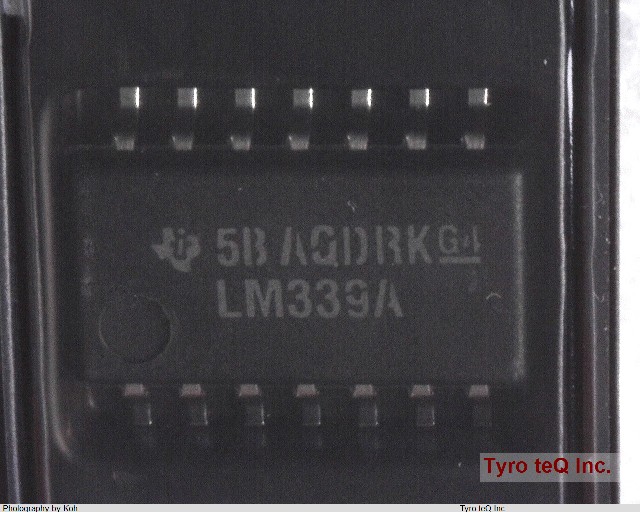

LM339ANSR データシート

Name: LM339ANSR
Brand: TI
SKU: 220020248-0000-0000-0000

LM339ANSR - TI の商品詳細ページです。

２営業日以内に回答いたします

LM339ANSR の詳細情報

型番	LM339ANSR
メーカー	TI
データシート
Amplifier Type	COMPARATOR
Average Bias Current-Max (IIB)	0.05 uA
Bias Current-Max (IIB) @25C	0.05 uA
Input Offset Voltage-Max	3000 uV
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e4
Length	10.3 mm
Moisture Sensitivity Level	1
Number of Functions	4
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Type	OPEN-COLLECTOR
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP14,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Qualification Status	Not Qualified
Response Time-Nom	300 ns
Seated Height-Max	2 mm
Sub Category	Comparator
Supply Current-Max	2 mA
Supply Voltage Limit-Max	36 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	5.3 mm
