LM339AD データシート

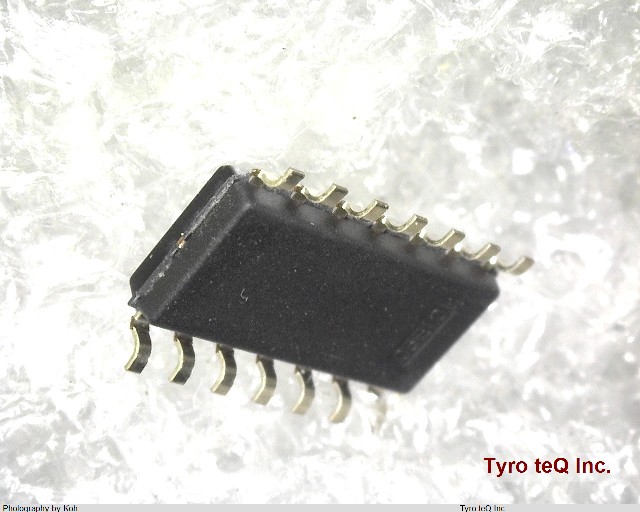

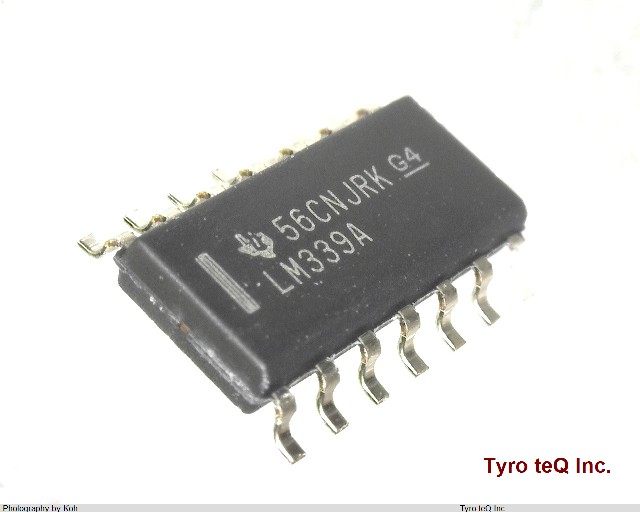

Name: LM339AD
Brand: TI
SKU: 220006137-0000-0000-0000

LM339AD - TI の商品詳細ページです。

２営業日以内に回答いたします

LM339AD の詳細情報

型番	LM339AD
メーカー	TI
データシート
Amplifier Type	COMPARATOR
Average Bias Current-Max (IIB)	-0.4 uA
Bias Current-Max (IIB) @25C	0.05 uA
Input Offset Voltage-Max	3000 uV
JESD-30 Code	R-CDIP-T14
JESD-609 Code	e0
Length	6.2 mm
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-18 V
Number of Functions	4
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Type	OPEN-COLLECTOR
Package Body Material	CERAMIC
Package Code	DIP
Package Equivalence Code	DIE OR CHIP
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	225
Power Supplies	5 V
Qualification Status	Not Qualified
Response Time-Nom	300 ns
Seated Height-Max	1.75 mm
Sub Category	Comparator
Supply Current-Max	2 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3.9 mm
