LM336Z-2.5 データシート

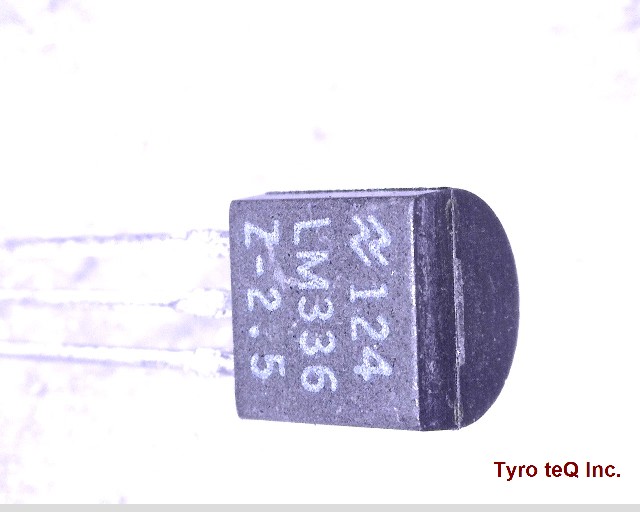

Name: LM336Z-2.5
Brand: TI
SKU: 220223753-0000-0000-0000

LM336Z-2.5 - TI の商品詳細ページです。

２営業日以内に回答いたします

LM336Z-2.5 の詳細情報

型番	LM336Z-2.5
メーカー	TI
データシート
Analog IC - Other Type	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 Code	O-PBCY-T3
JESD-609 Code	e0
Length	4.3 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Voltage-Max	2.515 V
Output Voltage-Min	2.39 V
Output Voltage-Nom	2.49 V
Package Body Material	PLASTIC/EPOXY
Package Code	TO-92
Package Equivalence Code	SIP3,.05,50
Package Shape	ROUND
Package Style	CYLINDRICAL Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	3.6 mm
Sub Category	Voltage References
Supply Current-Max (Isup)	10 mA
Surface Mount	NO
Technology	BIPOLAR
Temp Coef of Voltage-Max	20 ppm/Cel
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	1.27 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	40
Trim/Adjustable Output	NO V
Voltage Tolerance-Max	1 %
Width	4.3 mm
