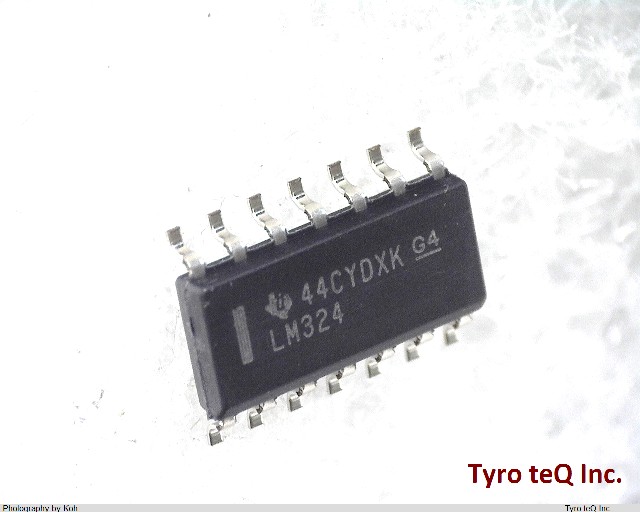

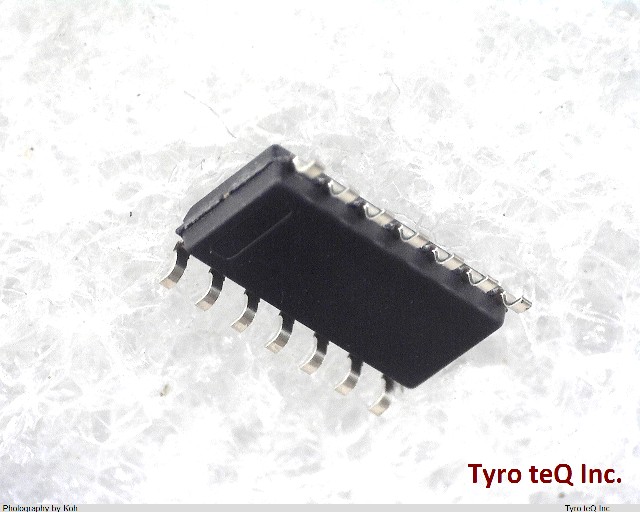

LM324D

Name: LM324D
Brand: TI
SKU: 220000319-0000-0000-0000

LM324D - TI の商品詳細ページです。

２営業日以内に回答いたします

LM324D の詳細情報

型番	LM324D
メーカー	TI
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	-0.5 uA
Bias Current-Max (IIB) @25C	0.1 uA
Common-mode Reject Ratio-Min	65 dB
Common-mode Reject Ratio-Nom	65 dB
Frequency Compensation	YES
Input Offset Current-Max (IIO)	0.15 uA
Input Offset Voltage-Max	3000 uV
JESD-30 Code	R-CDIP-T14
JESD-609 Code	e0
Length	5 mm
Low-Bias	NO
Low-Offset	NO
Micropower	YES
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-18 V
Number of Functions	4
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-20 Cel
Package Body Material	CERAMIC, METAL-SEALED COFIRED
Package Code	DIE
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	RAIL
Peak Reflow Temperature (Cel)	225
Power	NO
Power Supplies	+-1.5/+-15/3/30 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Slew Rate-Nom	0.3 V/us
Sub Category	Operational Amplifier
Supply Current-Max	1.2 mA
Supply Voltage Limit-Max	16 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	400 kHz
Voltage Gain-Min	15000
Wideband	NO
Width	3.9 mm
