LM319N データシート

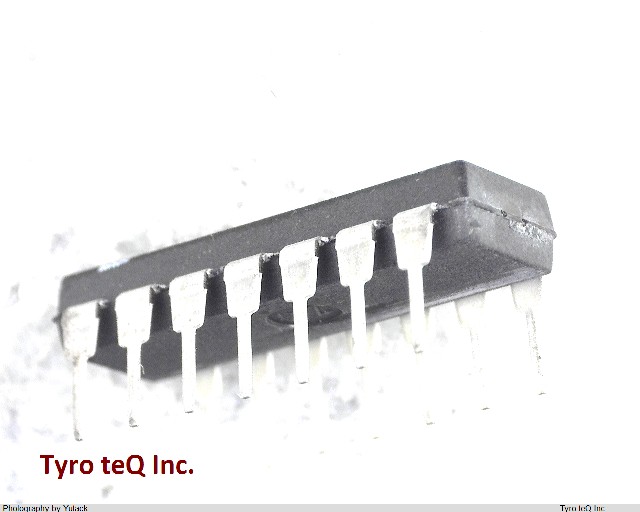

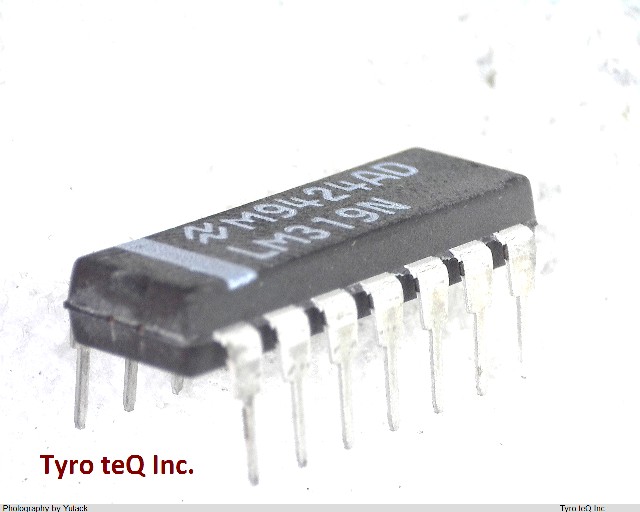

Name: LM319N
Brand: TI
SKU: 220204691-0000-0000-0000

LM319N - TI の商品詳細ページです。

２営業日以内に回答いたします

LM319N の詳細情報

型番	LM319N
メーカー	TI
カテゴリ	ドライバ
データシート
Amplifier Type	COMPARATOR
Average Bias Current-Max (IIB)	0.0012 uA
Bias Current-Max (IIB) @25C	1 uA
Description	High Speed Dual Comparator
Estimated Package Size (WxL)(mm2)	[pf]14SOIC[/pf]: 3.91 x 8.65: 51 mm2, [pf]14PDIP[/pf]: 6.35 x 19.177: 160 mm2
Input Bias Current (+/-)(Max)(nA)	1000
Input Offset Voltage-Max	8000 uV
Iq per channel(Max)(mA)	6.25
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	19.025 mm
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-25 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Channels(#)	2
Number of Functions	2
Number of Terminals	14
OPA: GBW(MHz)
Operating Temperature Range(C)	0 to 70
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Type	OPEN-COLLECTOR
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	250
Power Supplies	+-15 V
Qualification Status	Not Qualified
Rail-Rail
Rating	Catalog
Response Time-Nom	80 ns
Seated Height-Max	4.2 mm
Special Features
Status	ACTIVE
Sub Category	Comparator
Supply Current-Max	12.5 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Vos (Offset Voltage @ 25C)(Max)(mV)	8
Vs(Max)(V)	36
Vs(Min)(V)	5
Width	7.62 mm
tRESP Low - to - High(us)	0.025
