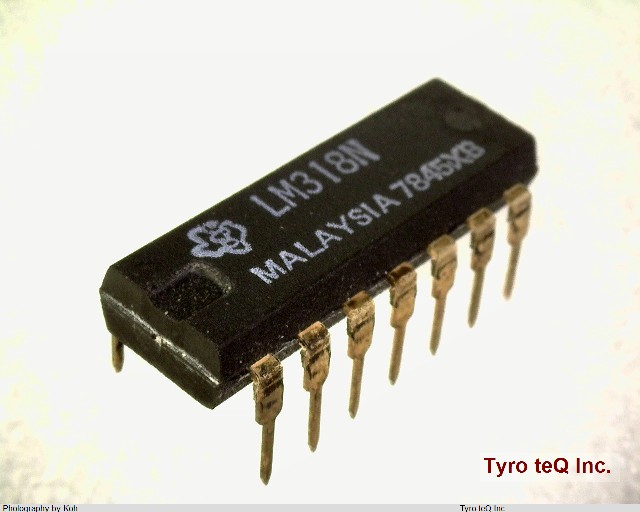

LM318-N

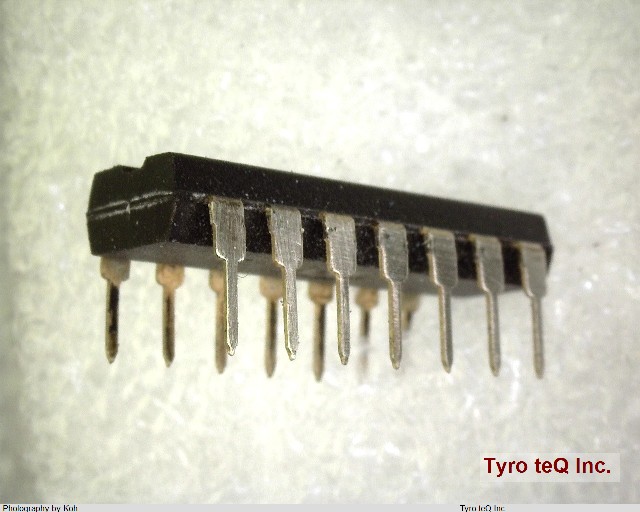

  • LM318-N
  • LM318-N
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

LM318-N の詳細情報

  • 仕様・詳細
  • メーカー情報
型番LM318-N
メーカーTI
カテゴリアンプ
データシートProduct_list_pdf
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.5 uA
Bias Current-Max (IIB) @25C 0.25 uA
CMRR(Min)(dB)
Common-mode Reject Ratio-Min 70 dB
Common-mode Reject Ratio-Nom 70 dB
Description Operational Amplifier
Estimated Package Size (WxL)(mm2) [pf]8SOIC[/pf]: 3.91 x 4.9: 29 mm2, [pf]8PDIP[/pf]: 6.35 x 9.81: 82 mm2
Frequency Compensation NO
GBW(Typ)(MHz) 15
IIB(Max)(pA) 750000
Input Offset Current-Max (IIO) 0.2 uA
Input Offset Voltage-Max 10000 uV
Io(Typ)(mA)
Iq per channel(Max)(mA)
JESD-30 Code R-PDIP-T8
JESD-609 Code e0
Length 4.9 mm
Low-Bias NO
Low-Offset NO
Micropower NO
Moisture Sensitivity Level 1
Neg Supply Voltage Limit-Max -20 V
Neg Supply Voltage-Nom (Vsup) -20 V
Number of Channels(#) 1
Number of Functions 1
Number of Terminals 8
Offset Drift(Typ)(uV/C)
Operating Temperature Range(C) 0 to 70
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Packing Method TUBE
Peak Reflow Temperature (Cel) 260
Power NO
Power Supplies +-5/+-20 V
Qualification Status Not Qualified
Rating Catalog
Seated Height-Max 1.75 mm
Slew Rate(Typ)(V/us) 70
Slew Rate-Min 50 V/us
Slew Rate-Nom 70 V/us
Status ACTIVE
Sub Category Operational Amplifier
Supply Current-Max 10 mA
Supply Voltage Limit-Max 20 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Total Supply Voltage(Max)(+5V=5, +/-5V=10) 40
Total Supply Voltage(Min)(+5V=5, +/-5V=10) 10
Unity Gain BW-Nom 15000 kHz
Vn at 1kHz(Typ)(nV/rtHz) 15
Voltage Gain-Min 20000
Vos (Offset Voltage @ 25C)(Max)(mV) 10
Width 3.9 mm
