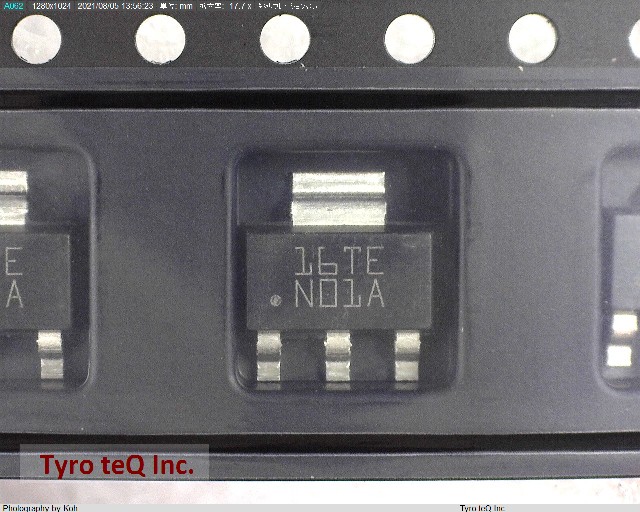

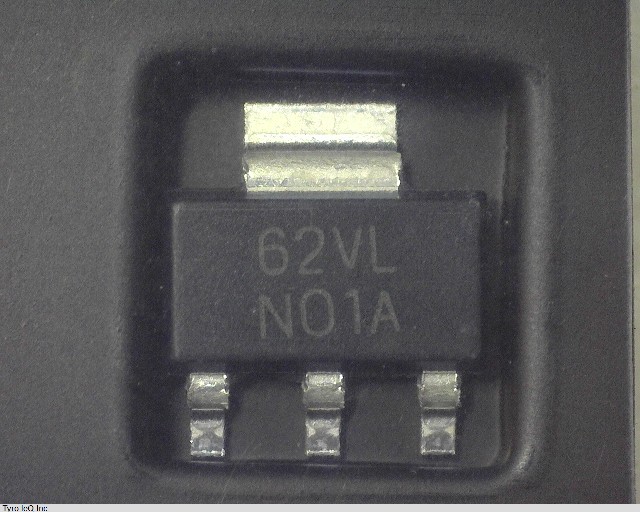

LM317EMP/NOPB

Name: LM317EMP/NOPB
Brand: TI
SKU: 220191062-0000-0000-0000

LM317EMP/NOPB - TI の商品詳細ページです。

２営業日以内に回答いたします

LM317EMP/NOPB の詳細情報

型番	LM317EMP/NOPB
メーカー	TI
Adjustability	ADJUSTABLE
Dropout Voltage1-Nom	2.25 V
Input Voltage-Max	40 V
Input Voltage-Min	3 V
Input-Output Voltage Differential-Max	40 V
Input-Output Voltage Differential-Min	3 V
JESD-30 Code	R-PDSO-G4
JESD-609 Code	e3
Length	6.5 mm
Line Regulation-Max (%/V)	0.07
Load Regulation-Max(%)	1.5 %
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	4
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Output Current1-Max	1 A
Output Voltage1-Max	37 V
Output Voltage1-Min	1.2 V
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOT-223
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Seated Height-Max	1.8 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	BIPOLAR
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	2.3 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Voltage Tolerance-Max	5 %
Width	3.56 mm
