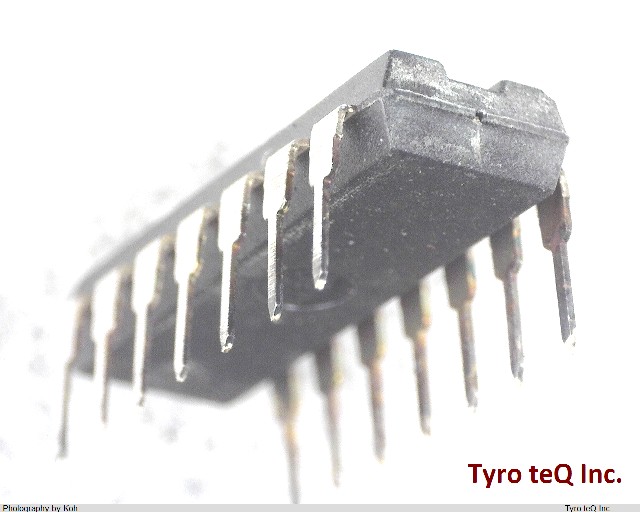

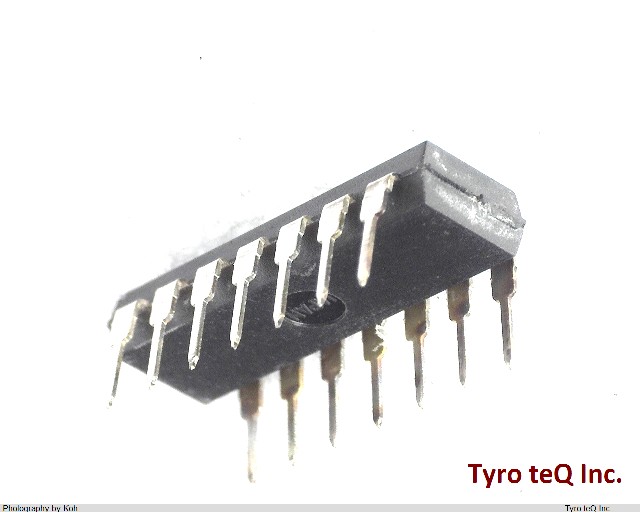

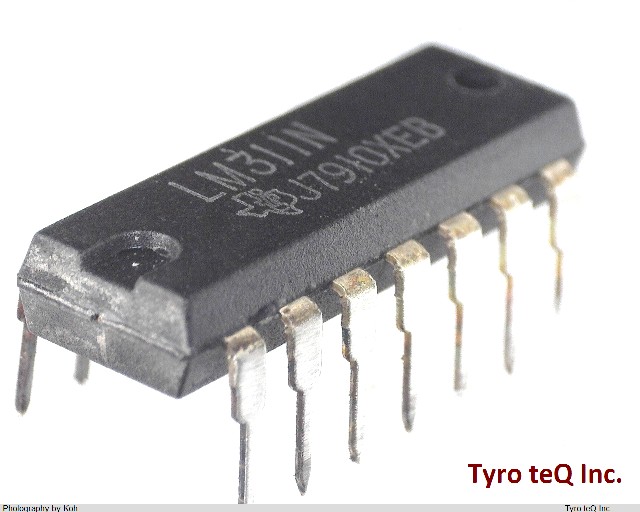

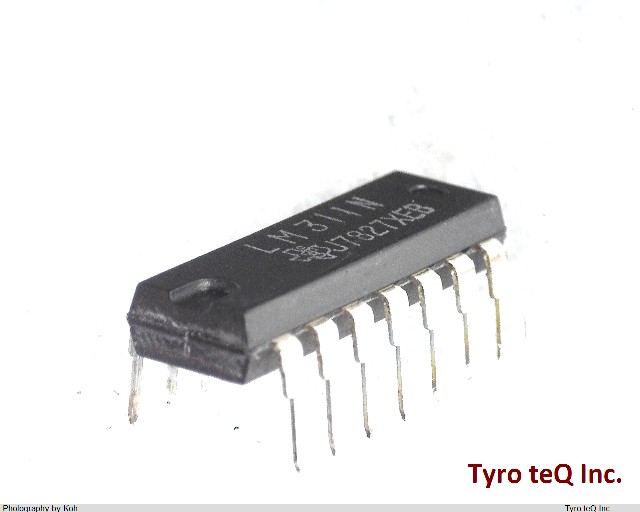

LM311N データシート

Name: LM311N
Brand: TI
SKU: 220204690-0000-0000-0000

LM311N - TI の商品詳細ページです。

２営業日以内に回答いたします

この商品のお問い合わせ

LM311N の詳細情報

仕様・詳細
メーカー情報

型番	LM311N
メーカー	TI
カテゴリ	ドライバ
データシート
Amplifier Type	COMPARATOR
Average Bias Current-Max (IIB)	0.1 uA
Bias Current-Max (IIB) @25C	0.05 uA
Description	Voltage Comparator
Estimated Package Size (WxL)(mm2)	[pf]8SOIC[/pf]: 3.91 x 4.9: 29 mm2, [pf]8PDIP[/pf]: 6.35 x 9.81: 82 mm2, [pf]8TO-99[/pf]: 9.08 x 9.08: 101 mm2
Input Bias Current (+/-)(Max)(nA)	250
Input Offset Voltage-Max	7500 uV
Iq per channel(Max)(mA)	7.5
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	9.2 mm
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Channels(#)	1
Number of Functions	1
Number of Terminals	8
OPA: GBW(MHz)
Operating Temperature Range(C)	0 to 70
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Type	OPEN-COLLECTOR
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	225
Power Supplies	+-15 V
Qualification Status	Not Qualified
Rail-Rail
Rating	Military
Response Time-Nom	2 ns
Seated Height-Max	3.937 mm
Special Features	Strobe, Vos Adj Pin
Status	HiRel
Sub Category	Comparator
Supply Current-Max	7.5 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Vos (Offset Voltage @ 25C)(Max)(mV)	7.5
Vs(Max)(V)	36
Vs(Min)(V)	5
Width	7.62 mm
tRESP Low - to - High(us)	0.2
