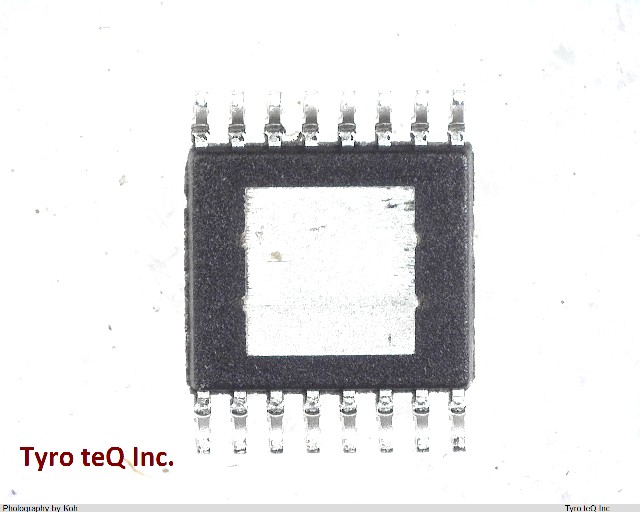

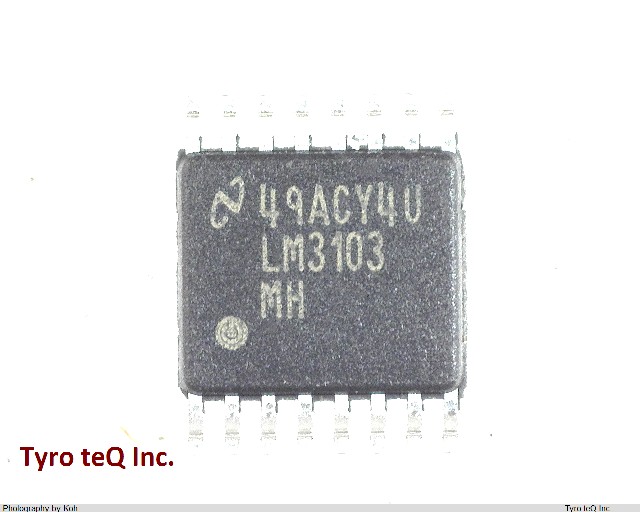

LM3103MH/NOPB

Name: LM3103MH/NOPB
Brand: TI
SKU: 220191046-0000-0000-0000

LM3103MH/NOPB - TI の商品詳細ページです。

２営業日以内に回答いたします

LM3103MH/NOPB の詳細情報

型番	LM3103MH/NOPB
メーカー	TI
Additional Feature	ALSO HAS ADJUSTABLE OUTPUT VOLTAGE DOWN TO 0.6V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	VOLTAGE-MODE
Input Voltage-Max	42 V
Input Voltage-Min	4.5 V
Input Voltage-Nom	18 V
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e3
Length	5 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	16
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	0.75 A
Output Voltage-Max	7 V
Output Voltage-Min	0.6 V
Output Voltage-Nom	6 V
Package Body Material	PLASTIC/EPOXY
Package Code	HSSOP
Package Equivalence Code	TSSOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1 mm
Sub Category	Switching Regulator or Controllers
Supply Voltage-Nom (Vsup)	18 V
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	1000 kHz
Technology	MOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	4.4 mm
