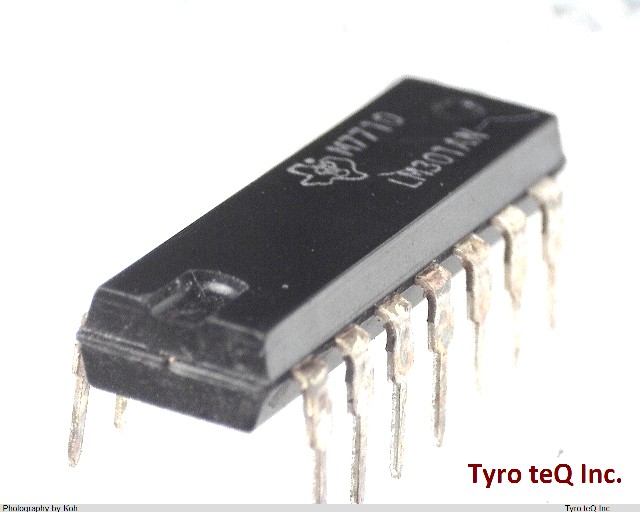

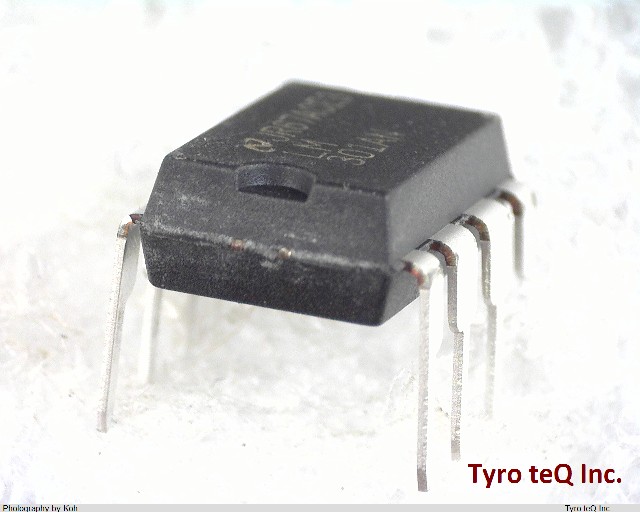

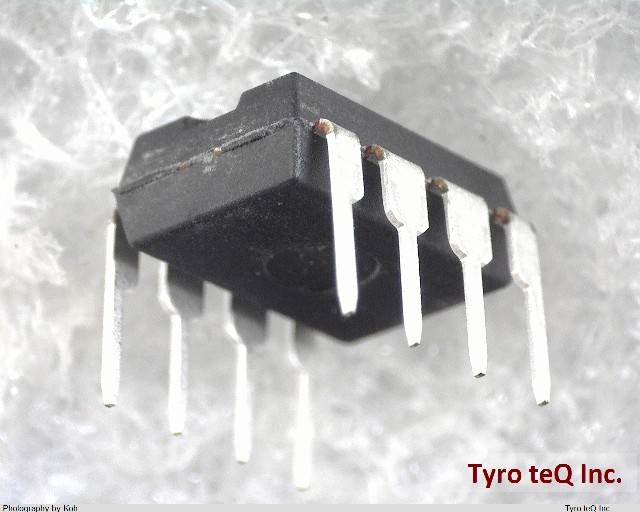

LM301AN データシート

Name: LM301AN
Brand: TI
SKU: 220020066-0000-0000-0000

LM301AN - TI の商品詳細ページです。

２営業日以内に回答いたします

この商品のお問い合わせ

LM301AN の詳細情報

仕様・詳細
メーカー情報

型番	LM301AN
メーカー	TI
カテゴリ	アンプ
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.03 uA
Bias Current-Max (IIB) @25C	0.1 uA
CMRR(Min)(dB)
Common-mode Reject Ratio-Min	70 dB
Common-mode Reject Ratio-Nom	90 dB
Description	Operational Amplifier
Estimated Package Size (WxL)(mm2)	[pf]8PDIP[/pf]: 6.35 x 9.81: 82 mm2, [pf]8TO-99[/pf]: 9.08 x 9.08: 101 mm2
Frequency Compensation	NO
GBW(Typ)(MHz)	1
IIB(Max)(pA)	300000
Input Offset Voltage-Max	7500 uV
Io(Typ)(mA)
Iq per channel(Max)(mA)
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	9.2 mm
Low-Offset	NO
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-22 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Channels(#)	1
Number of Functions	1
Number of Terminals	8
Offset Drift(Typ)(uV/C)
Operating Temperature Range(C)	0 to 70
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	RAIL
Peak Reflow Temperature (Cel)	235
Power Supplies	+-5/+-15 V
Qualification Status	Not Qualified
Rating	Military
Seated Height-Max	4.45 mm
Slew Rate(Typ)(V/us)	0.5
Slew Rate-Min	0.25 V/us
Slew Rate-Nom	0.5 V/us
Status	HiRel
Sub Category	Operational Amplifier
Supply Current-Max	3 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Total Supply Voltage(Max)(+5V=5, +/-5V=10)	36
Total Supply Voltage(Min)(+5V=5, +/-5V=10)	10
Unity Gain BW-Nom	1000 kHz
Vn at 1kHz(Typ)(nV/rtHz)	15
Voltage Gain-Min	15000
Vos (Offset Voltage @ 25C)(Max)(mV)	7.5
Width	7.62 mm
