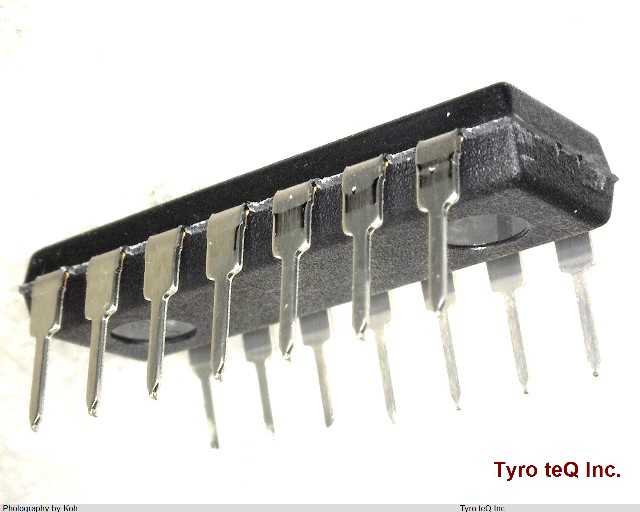

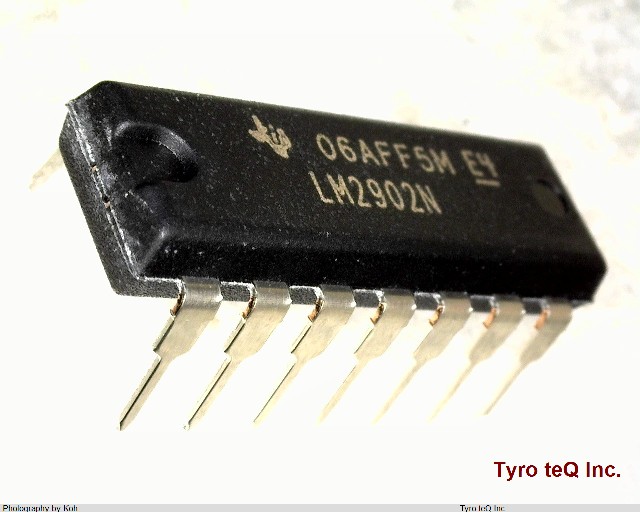

LM2902NE4

Name: LM2902NE4
Brand: TI
SKU: 220057694-0000-0000-0000

LM2902NE4 - TI の商品詳細ページです。

２営業日以内に回答いたします

LM2902NE4 の詳細情報

型番	LM2902NE4
メーカー	TI
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	-0.5 uA
Bias Current-Max (IIB) @25C	0.25 uA
Common-mode Reject Ratio-Min	50 dB
Common-mode Reject Ratio-Nom	80 dB
Frequency Compensation	YES
Input Offset Current-Max (IIO)	0.3 uA
Input Offset Voltage-Max	7000 uV
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e4
Length	19.305 mm
Low-Bias	NO
Low-Offset	NO
Micropower	YES
Number of Functions	4
Number of Terminals	14
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power	NO
Power Supplies	+-1.5/+-13/3/26 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Slew Rate-Nom	0.5 V/us
Sub Category	Operational Amplifier
Supply Current-Max	1.2 mA
Supply Voltage Limit-Max	26 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	AUTOMOTIVE
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Unity Gain BW-Nom	1200 kHz
Voltage Gain-Min	15000
Wideband	NO
Width	7.62 mm
