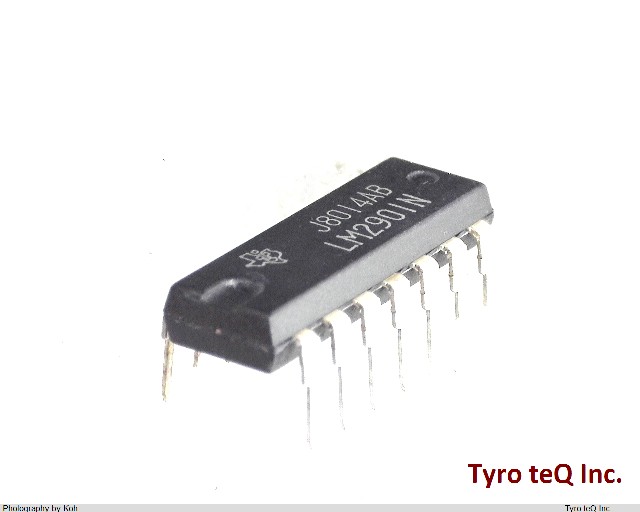

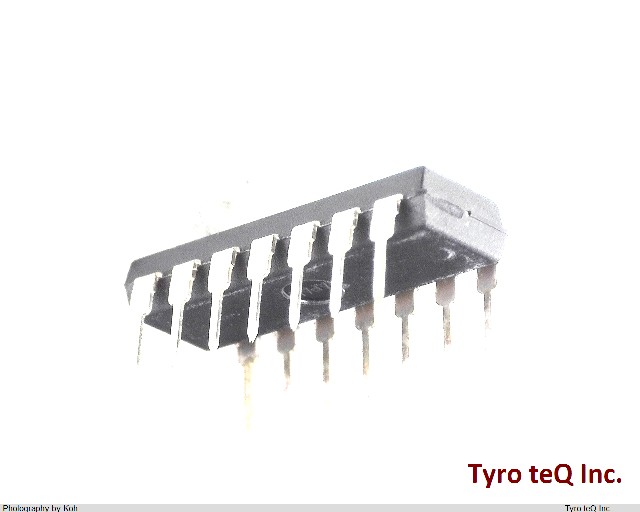

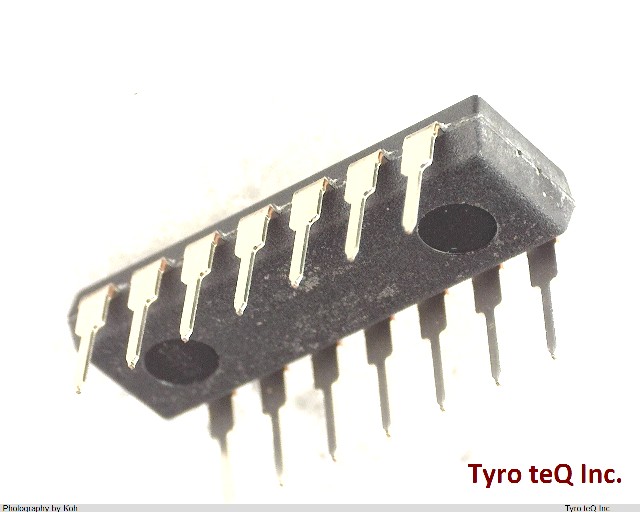

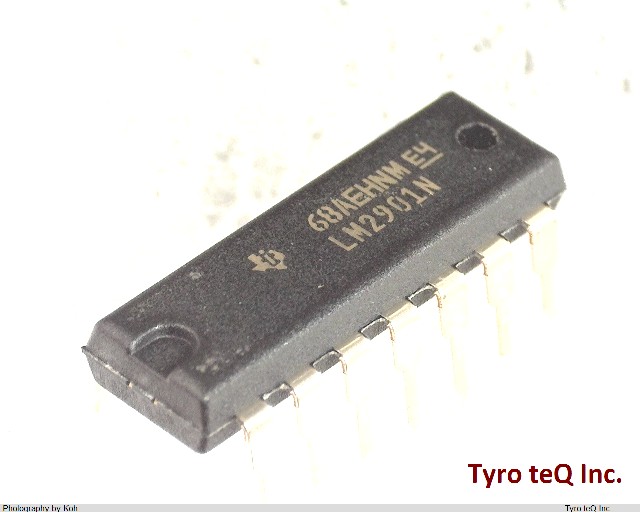

LM2901N

Name: LM2901N
Brand: TI
SKU: 220204677-0000-0000-0000

LM2901N - TI の商品詳細ページです。

２営業日以内に回答いたします

LM2901N の詳細情報

型番	LM2901N
メーカー	TI
カテゴリ	ドライバ
Amplifier Type	COMPARATOR
Average Bias Current-Max (IIB)	-0.5 uA
Bias Current-Max (IIB) @25C	0.25 uA
Description	Low Power Low Offset Voltage Quad Comparator
Estimated Package Size (WxL)(mm2)	[pf]14SOIC[/pf]: 3.91 x 8.65: 51 mm2, [pf]14PDIP[/pf]: 6.35 x 19.177: 160 mm2
Input Bias Current (+/-)(Max)(nA)	250
Input Offset Voltage-Max	7000 uV
Iq per channel(Max)(mA)	0.5
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	10.2 mm
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	0 V
Number of Channels(#)	4
Number of Functions	4
Number of Terminals	14
OPA: GBW(MHz)
Operating Temperature Range(C)	-40 to 85
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Type	OPEN-COLLECTOR
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	225
Power Supplies	5 V
Qualification Status	Not Qualified
Rail-Rail	Out
Rating	Catalog
Response Time-Nom	1300 ns
Seated Height-Max	2 mm
Special Features
Status	ACTIVE
Sub Category	Comparator
Supply Current-Max	2 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	AUTOMOTIVE
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Vos (Offset Voltage @ 25C)(Max)(mV)	7
Vs(Max)(V)	36
Vs(Min)(V)	2
Width	5.3 mm
tRESP Low - to - High(us)	0.7
