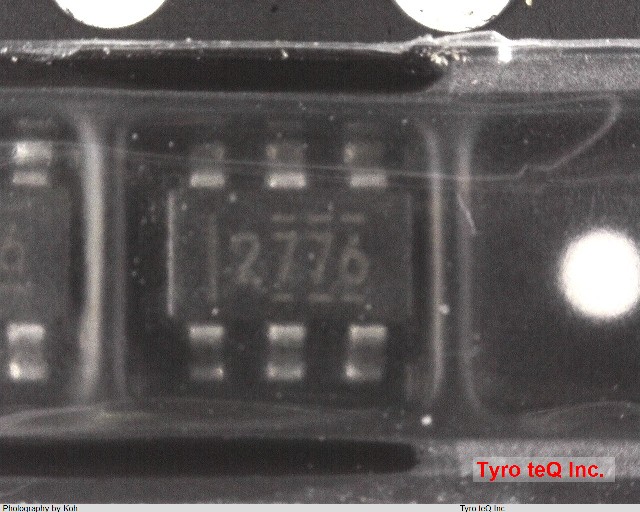

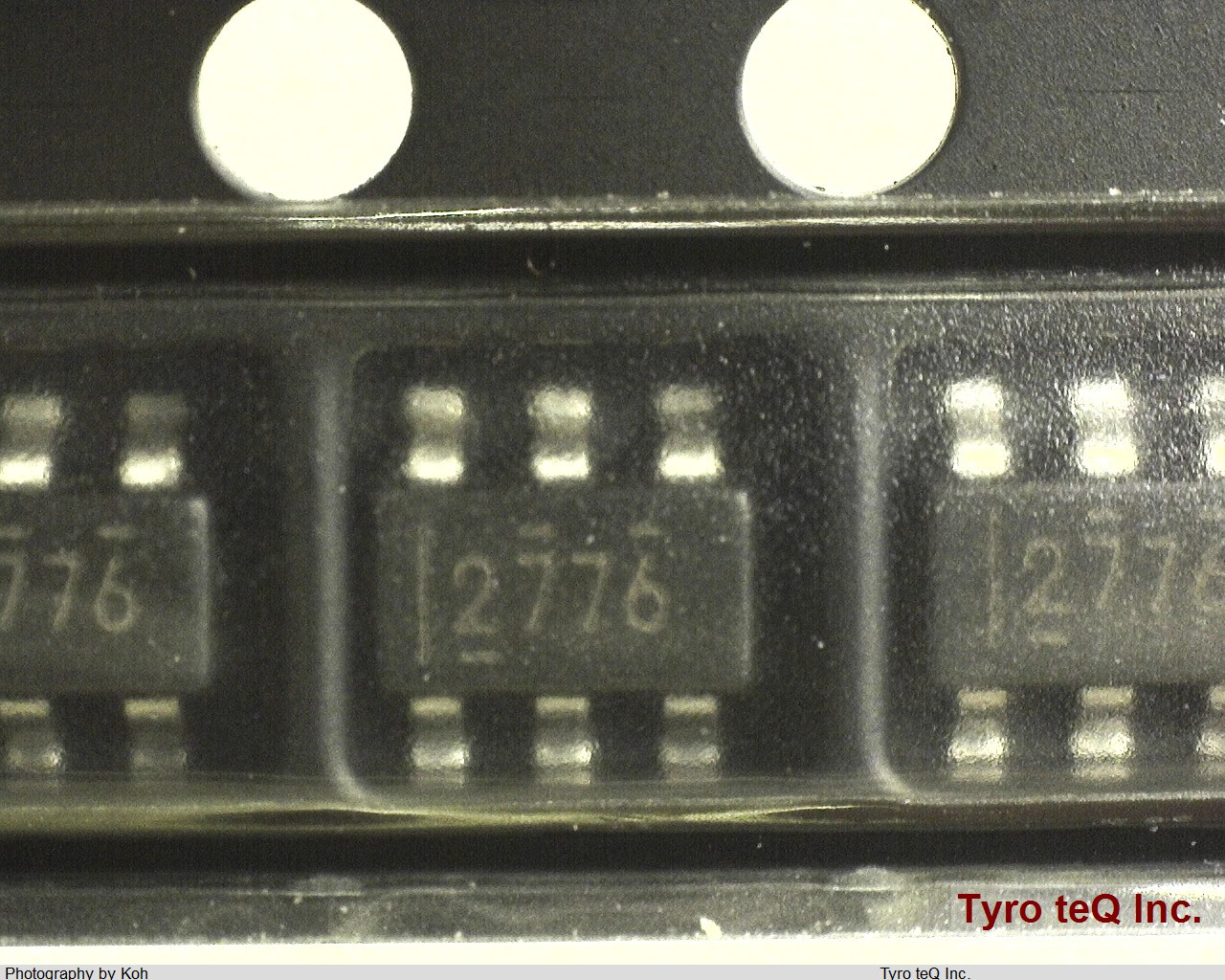

LM2776DBVT

Name: LM2776DBVT
Brand: TI
SKU: 400034338-0000-0000-0000

LM2776DBVT - TI の商品詳細ページです。

２営業日以内に回答いたします

LM2776DBVT の詳細情報

型番	LM2776DBVT
メーカー	TI
Analog IC - Other Type	SWITCHED CAPACITOR CONVERTER
Control Technique	PULSE FREQUENCY MODULATION
Input Voltage-Max	5.5 V
Input Voltage-Min	2.7 V
Input Voltage-Nom	3.6 V
JESD-30 Code	R-PDSO-G6
JESD-609 Code	e3
Length	2.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	6
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	0.2 A
Output Voltage-Max	-2.7 V
Output Voltage-Min	-5.5 V
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Seated Height-Max	1.45 mm
Surface Mount	YES
Switcher Configuration	INVERTER
Switching Frequency-Max	2300 kHz
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Position	DUAL
Width	1.6 mm
